RK 4T-10 Turck Cordsets

Turck RK 4T-10 Actuator and Sensor Cordset, Connection Cable, Cable length (L) 10 m, M12, Female, Straight, 3-pin, Instrumentation Tray Cable, Gray PVC jacket, 3X22 AWG, Sunlight Resistant, -40 Cold Bend Rating, Oil Resistant, Flame Ratings: UL 1685 FT4, UL1061, CSA FT4, Flexlife® and C-Track Approved, Cable length: 10 m
Turck

Part#:RK 4T-10

Manufacturer:Turck

Alt. Part#:U2160

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 10 m, M12, Female, Straight, 3-pin, Instrumentation Tray Cable, Gray PVC jacket, 3X22 AWG, Sunlight Resistant, -40 Cold Bend Rating, Oil Resistant, Flame Ratings: UL 1685 FT4, UL1061, CSA FT4, Flexlife® and C-Track Approved, Cable length: 10 m

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RK 4T-10 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    383 g
  • Cable length (L)
    10.0  m
  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Cable Jacket Color
    Gray
  • Number of Conductors
    3
  • Connector A - Style
    Straight, Female
  • Voltage
    250 V
  • Material coupling/housing A
    Brass
  • Connector A - Number of Pins
    4
  • Connector A
    M12 × 1
  • Cable Jacket Material
    PVC
  • Current
    4 A
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RK 4T-10 Description

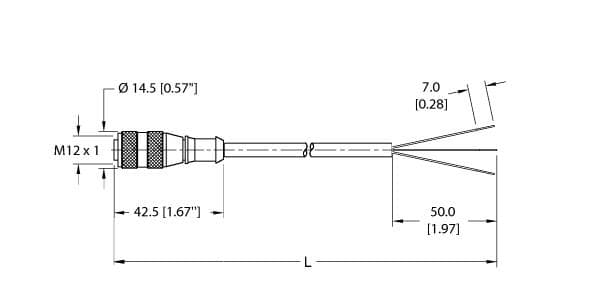

Turck RK 4T-10 is a single-ended mating cable/cordset designed for automation applications, featuring a 4-pin M12 eurofast female connector with T-barb fitting to bare end flying leads. This cable is 10 meters in length and comes with a gray sheath and BN/BU/BK wires. The nickel-plated brass coupling nut and PVC jacket ensure durability, while the cable's outer diameter measures 5.1mm. It is rated for a current of 4A and a voltage of 250Vac. The RK 4T-10 offers a degree of protection rated at IP68 and NEMA 1, 3, 4, 6P, making it suitable for various environmental conditions. It operates with a 3-wire connection and has a cross-section of 3 x #22AWG.

Related documents RK 4T-10 Specs

RK 4T-10 English.pdf

This item can ship within 24h!

Manufacturer warranty

$43.60

Stock:

1

Select Qty:

$43.60

$43.60 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
