RI-43H38S8-2F3600-H1181 Turck Encoders
Part#:RI-43H38S8-2F3600-H1181
Manufacturer:Turck
Alt. Part#:1545635
Product Lifecycle:Active
Get a quick Quote!

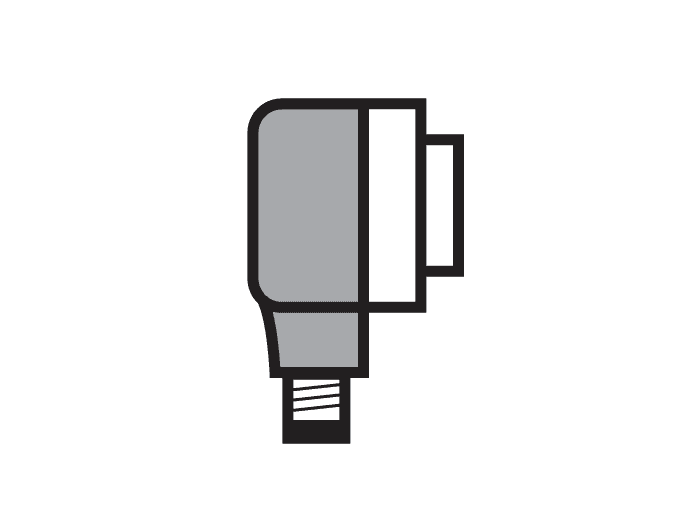

RI-43H38S8-2F3600-H1181 Incremental Hollow Shaft Encoder, Industrial Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI-43H38S8-2F3600-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- RoHS Yes
- Country Of Origin USA
- HTS Code 9029108000
- Protection class IP65
- Protection class shaft IP65
- Ambient temperature -40…+80 °C
- Housing material Die-cast zinc
- Electrical connection Connector, M12 × 1
- Output function Push-Pull/HTL, with inverted signals
- Flange type Flange with mounting element
- Encoder line Industrial-Line
- Resolution, incremental 3600 ppr
- Operating voltage 5…30 VDC
- Shaft Type Hollow shaft
- Technology Optical
- Flange diameter Ø 100 mm
- Shaft diameter D [mm] 38 mm
- Output type Incremental
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI-43H38S8-2F3600-H1181 Description
Turck RI-43H38S8-2F3600-H1181 is an incremental rotary encoder designed for flange mounting with a long tether arm. It operates within an ambient air temperature range of -40 to +80°C and features a large-bore through hollow shaft flange with long tether arm optical sensing. This encoder is pre-equipped with a radial 8-pin M12 Eurofast QD male connector and falls under the Type RI-43 series. It has dimensions of H140mm x W135mm x D174mm with a 100mm casing diameter and offers a degree of protection of IP65. The supply voltage ranges from 5Vdc to 30Vdc, supporting 6Vdc, 12Vdc, and 24Vdc, with a maximum pulse frequency of 300kHz (up to 5000rpm). Constructed with a die-cast metal housing, stainless steel shaft, and aluminium flange, it features a 38mm hollow shaft bore. The encoder provides 1 x digital output (push-pull with inverting signal; 5Vdc-30Vdc), includes short-circuit protection, and can handle a rotational speed of up to 6000rpm (mechanical limit). Its moment of inertia is less than 220x10^-6kg.m^2, with a resolution of 3600ppr (pulses/revolution), and a current consumption of 50mA (no load).
