PT20PSIG-1003-I2-H1143 Turck Industrial Automation Components

PT20PSIG-1003-I2-H1143 on Powermatic Associates
Turck

Part#:PT20PSIG-1003-I2-H1143

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

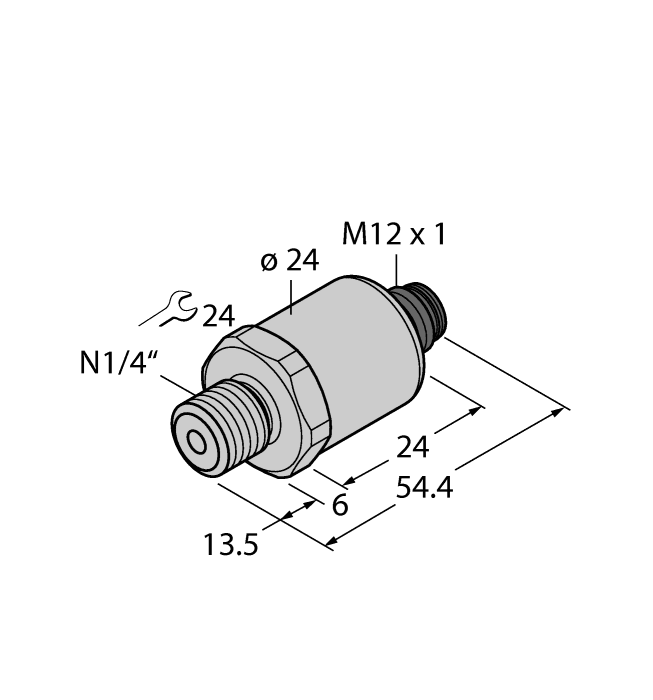

PT20PSIG-1003-I2-H1143 Turck - PT20PSIG-1003-I2-H1143 Pressure Transmitter, With Current Output (2-Wire)

Product Details

  • Weight
    90 grams
  • Operating Voltage
    33 volts
  • Country of Origin
    Switzerland
  • Ambient Temperature
    -30 degrees celsius, 85 degrees celsius
  • Protection class
    IP67
  • Ambient temperature
    -30…+85 °C
  • Medium temperature
    -40…+125 °C
  • Pressure transducer material
    Ceramics Al2O3
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
  • Electrical output
    Current output (2-wire)
  • Electrical connection
    Connector, M12 × 1
  • Relative pressure bar
    0…1.4 bar rel.
  • Design
    Without display
  • Relative pressure psi
    0…20 psi rel.
  • Process connection
    1/4” NPT-18 male thread
  • Operating voltage
    7…33 VDC
  • Current output
    4…20 mA
  • Pressure type
    Relative pressure

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Pressure Transmitter, With Current Output (2-Wire), , Ceramic measuring cell, Compact and robust design, Excellent EMC properties, , Pressure range 0…20 psi relative, 7…33 VDC, Analog output 4…20 mA, Process connection 1/4-18 NPT male thread, Plug-in device, M12 × 1, "
