PT15PSIV-1013-IX-H1143 Turck Industrial Automation Components

PT15PSIV-1013-IX-H1143 on Powermatic Associates
Turck

Part#:PT15PSIV-1013-IX-H1143

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

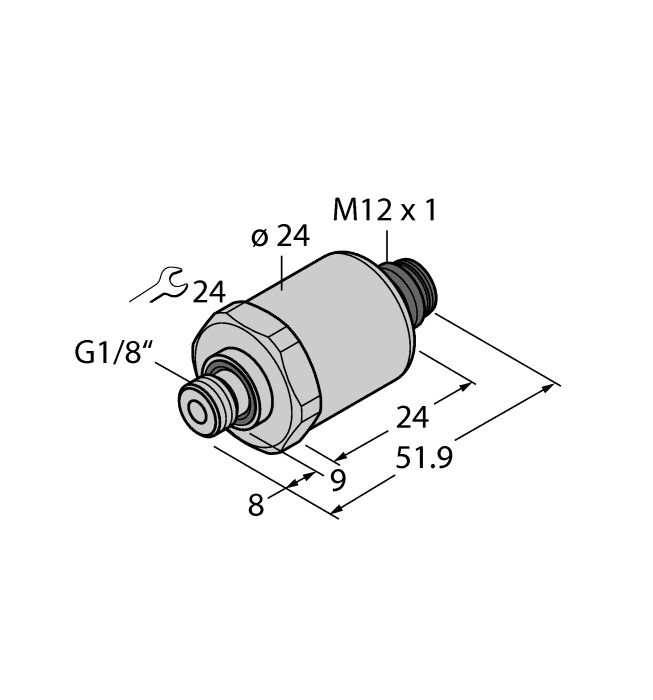

PT15PSIV-1013-IX-H1143 Turck - PT15PSIV-1013-IX-H1143 Pressure Transmitter, With Current Output (2-Wire)

Product Details

  • Operating Voltage
    10 volts, 30 volts
  • Weight
    88 grams
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 85 degrees celsius
  • Approvals
    ‌​‍‍‌‌​‌‌‌​‌‌‍‍‌​​‍‌‍​‍​‌​‍​‍‍‌‍‍​‌​‌​‍‌‌ATEX II 1/2 GD, IECEx II 1/2 GD
  • Ambient temperature
    -25…+85 °C
  • Medium temperature
    -30…+120 °C
  • Protection class
    IP67
  • Pressure transducer material
    Ceramics Al2O3
  • Housing material
    Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
  • Process connection
    G 1/8” male thread DIN 3852-E (rear sealing)
  • Current output
    4…20 mA
  • Relative pressure psi
    -15…15 psi rel.
  • Electrical connection
    Connector, M12 × 1
  • Electrical output
    Current output (2-wire)
  • Operating voltage
    10…30 VDC
  • Pressure type
    Relative pressure
  • Relative pressure bar
    -1.03…1.03 bar rel.
  • Design
    Without display

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Pressure Transmitter, With Current Output (2-Wire), , Ceramic measuring cell, Compact and robust design, Excellent EMC properties, , ATEX Ex II 1/2 GD, FPM sealing material, 10…30 VDC, Analog output 4…20 mA, Process connection G 1/8'' male thread (DIN 3852-E), Connector device, M12 × 1, ATEX, IECEx, Category II 1/2 GD, Ex zone 0
