NI20-Q14-AP6X2 7M Turck Inductive Sensors
Part#:NI20-Q14-AP6X2 7M
Manufacturer:Turck
Alt. Part#:4690206
Product Lifecycle:Active
Get a quick Quote!

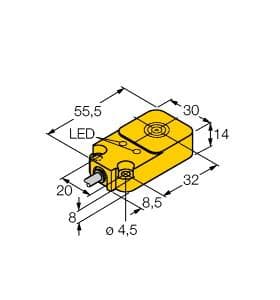

NI20-Q14-AP6X2 7M Inductive Sensor
About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the NI20-Q14-AP6X2 7M Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 298 g
- Ambient temperature -25…+70 °C
- Housing material Plastic, PBT-GF30-V0
- Protection class IP67
- Operating voltage 10…30 VDC
- Electrical connection Cable
- Cable length (L) 7.0 m
- Output function NO contact, PNP
- Design Rectangular
- Mounting Non-flush
- Rated switching distance 20 mm
- Construction size 52 x 30 x 14 mm, Q14
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
NI20-Q14-AP6X2 7M Description
Turck NI20-Q14-AP6X2 7M is an inductive proximity sensor designed for detecting the presence of metal objects without contact. It operates within an ambient air temperature range of -25°C to +70°C and is equipped with a pre-wired 7m / 23ft PUR cable terminated with bare end flying leads for connection. This sensor falls within the NI...-Q14 series and features a 14mm thick rectangular body with a degree of protection rated at IP67, making it suitable for various industrial environments. It supports a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and can switch at frequencies up to 250Hz. The housing and sensing face are made from glass fiber reinforced Polybutylene Terephthalate (PBT-GF30-V0), and the cable jacket is made of Polyurethane (PUR), ensuring durability. The sensing distance is 20mm, and it operates in a Normally Open (NO) mode. It has one digital output (10-30Vdc; PNP; 200mA max.) and includes protection functions against short-circuit (pulsed), overload, and reverse polarity. The current consumption is 15mA under no-load conditions.
Related documents NI20-Q14-AP6X2 7M Specs
