NI10U-EM12WD-AP6X-H1141/3GD Turck Inductive Sensors

NI10U-EM12WD-AP6X-H1141/3GD on Powermatic Associates
Turck

Part#:NI10U-EM12WD-AP6X-H1141/3GD

Manufacturer:Turck

Alt. Part#:1634857

Product Lifecycle:Active

Get a quick Quote!

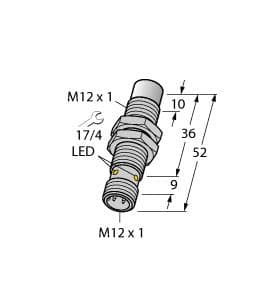

NI10U-EM12WD-AP6X-H1141/3GD Inductive Sensor, For the food industry

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the NI10U-EM12WD-AP6X-H1141/3GD Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    36 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Operating Voltage
    10 volts, 30 volts
  • Weight
    36 grams
  • Ambient Temperature
    100 degrees celsius
  • Country of Origin
    Germany
  • Protection class
    IP68/IP69K
  • Approvals
    ATEX II 3G, ATEX II 3D
  • Special features
    uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
  • Rated switching distance
    10 mm
  • Mounting
    Non-flush
  • Operating voltage
    10…30 VDC
  • Output function
    NO contact, PNP
  • Housing material
    Stainless steel, 1.4404 (AISI 316L)
  • Electrical connection
    Connector, M12 × 1
  • Ambient temperature
    -40…+100 °C
  • Design
    Threaded barrel
  • Construction size
    M12 x 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NI10U-EM12WD-AP6X-H1141/3GD Description

Inductive Sensor, For the food industry, Rated switching distance 10 mm, Non-flush, Threaded barrel, M12 x 1, Stainless steel, 1.4404, Front cap made of liquid crystal polymer, Factor 1 for all metals, Resistant to magnetic fields, For temperatures of -40 °C…+100 °C, High protection class IP69K for harsh environments, Special double-lip seal, Protection against all common acidic and alkaline cleaning agents, Laser engraved label, permanently legible, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector, ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22

Related documents NI10U-EM12WD-AP6X-H1141/3GD Specs

NI10U-EM12WD-AP6X-H1141/3GD English-1630965663241.pdf
