LT30E-ER10-LU0-H1151 Turck Industrial Automation Components

LT30E-ER10-LU0-H1151 on Powermatic Associates
Turck

Part#:LT30E-ER10-LU0-H1151

Manufacturer:Turck

Alt. Part#:LT0630

Product Lifecycle:Active

Get a quick Quote!

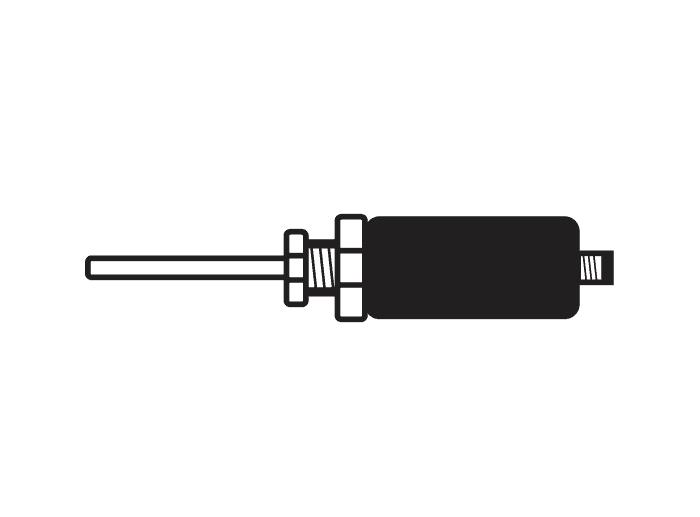

LT30E-ER10-LU0-H1151 Magnetically actuated linear position sensor

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the LT30E-ER10-LU0-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

  • Country Of Origin
    USA
  • HTS Code
    9032896085
  • Measuring range
    762 mm [30.00 in]
  • Approvals
    CE
  • Voltage output
    0…10 V
  • Output function
    Analog output

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LT30E-ER10-LU0-H1151 Description

Turck LT30E-ER10-LU0-H1151 is a sensor designed for liquid level measurement within the EZ-track series. This instrumentation liquid level floating sensor / transmitter features a cylindrical rod shape with a housing made of 1.4401 (316) stainless steel. It offers a 30" measurement span and is pre-equipped with a 5-pin M12 Eurofast QD male connector for connectivity. The sensor operates under pressures ranging from +5000 to +10000psi and requires a supply voltage of 13.5-30Vdc, with 24Vdc nominal. The rod diameter is 10mm, and it is designed to function within an ambient air temperature range of -20°C to +70°C. It is protected to a degree of IP67, ensuring its operation in various environmental conditions. The LT30E-ER10-LU0-H1151 provides 1 x analog output (0-10Vdc; 16-bit conversion) with a current consumption of 200mA / 0.2A and a response time of 40ms / 0.04 s. Its measurement accuracy (resolution) is 0.001", and it has a power consumption of 3 W.

Related documents LT30E-ER10-LU0-H1151 Specs

LT30E-ER10-LU0-H1151 LT30E-ER10-LU0-H1151-1630965886301.pdf

Manufacturer warranty

$2,309.80

Request a quote, and we will send availability within minutes.

Select Qty:

$2,309.80

$2,309.80 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
