JRBS-40SC-6R/EX Turck I/O Junction Boxes

JRBS-40SC-6R/EX on Powermatic Associates
Turck

Part#:JRBS-40SC-6R/EX

Manufacturer:Turck

Alt. Part#:6611460

Product Lifecycle:Active

Get a quick Quote!

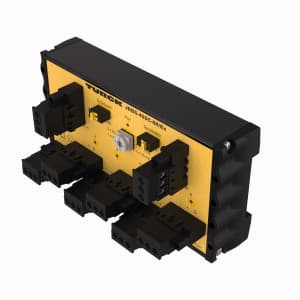

JRBS-40SC-6R/EX FOUNDATION fieldbus and PROFIBUS-PA, IP20 junction box, 6-channel

About the manufacturer: Turck is one of the manufacturers that offers I/O Junction Boxes that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the JRBS-40SC-6R/EX Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    297 g
  • Country Of Origin
    DEU
  • HTS Code
    8536908530
  • Protection class
    IP20
  • Ambient temperature
    -25…+70 °C
  • Approvals
    ATEX, Ex-Approval
  • Fieldbus Protocol
    FOUNDATION fieldbus, PROFIBUS-PA
  • Product Family
    JRBS
  • Connection technology signal
    Screw terminal
  • Device type
    Active fieldbus junction box

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

JRBS-40SC-6R/EX Description

Turck JRBS-40SC-6R/EX is a junction box belonging to the JRBS series, designed for FOUNDATION fieldbus and PROFIBUS-PA passive junction rail applications. It features short-circuit protection and is suitable for extended rail mount installations, complying with ATEX standards. The housing is made of extruded aluminium with a black and yellow color scheme, and the terminal block is constructed from Nylon. This model offers 6 removable screw terminal connections for drops and 2 removable screw terminal connections for BUS IN and BUS OUT, supporting PROFIBUS and FOUNDATION Fieldbus communication protocols. It operates on a supply voltage range of 12Vdc to 32Vdc, with a nominal voltage of 24Vdc, and can be mounted on a DIN rail. The JRBS-40SC-6R/EX has a net height of 142 mm, a width of 75.5 mm, and a depth of 60 mm. It operates within an ambient air temperature range of -25 to +70°C and offers an IP20 degree of protection. The connection capacity includes 6 ports for drops plus 1 bus IN and OUT for daisy-chaining.

Related documents JRBS-40SC-6R/EX Specs

JRBS-40SC-6R/EX English-1630968775267.pdf
