IMC-AI-11EX-I/L Turck Signal Isolators

Turck IMC-AI-11EX-I/L IMC-AI-11EX-I/L Analog signal isolator, 1-channel
Turck

Part#:IMC-AI-11EX-I/L

Manufacturer:Turck

Alt. Part#:7560004

Product Lifecycle:Active

Get a quick Quote!

IMC-AI-11EX-I/L Analog signal isolator, 1-channel

About the manufacturer: Turck is one of the manufacturers that offers Signal Isolators that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the IMC-AI-11EX-I/L Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    157 g
  • Signal type
    Analog input
  • Device type
    Analog signal isolator - Input field side
  • Approvals
    ATEX, IECEx, TR CU
  • Nominal voltage
    Loop-powered
  • Ex version
    yes
  • Product series
    IMC
  • Protection class
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IMC-AI-11EX-I/L Description

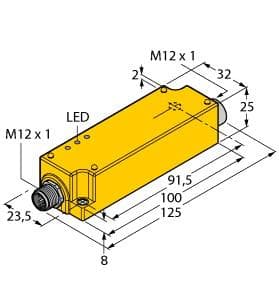

Turck IMC-AI-11EX-I/L is an interface unit belonging to the IMC cartridge series, designed for analog input signal isolation. It features a loop-powered, 1-channel configuration that is SIL2 certified according to EXIDA FMEDA and complies with ATEX standards. The unit is housed in a polycarbonate/ABS material and utilizes a 5-pin M12 connector for connections. It offers protection against short-circuits and operates with a 24Vdc supply voltage. Designed for surface panel mounting, the IMC-AI-11EX-I/L measures 125 mm in height, 32 mm in width, and 25 mm in depth. It can operate in ambient air temperatures ranging from -25 to +70°C. This model is IP67 rated for protection and supports 1 x analog output (0-20mA / 4-20mA) and 1 x analog input (0-20mA / 4-20mA).

Related documents IMC-AI-11EX-I/L Specs

IMC-AI-11EX-I/L English.pdf
