IM21-14-CDTRI Turck Signal Isolators

Turck IM21-14-CDTRI IM21-14-CDTRI Rotation speed monitor, 1-channel
Turck

Part#:IM21-14-CDTRI

Manufacturer:Turck

Alt. Part#:7505650

Product Lifecycle:Active

Get a quick Quote!

IM21-14-CDTRI Rotation speed monitor, 1-channel

About the manufacturer: Turck is one of the manufacturers that offers Signal Isolators that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the IM21-14-CDTRI Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    247 g
  • Ex version
    no
  • Product series
    IM
  • Approvals
    TR CU
  • Protection class
    IP20
  • Nominal voltage
    Wide voltage range
  • Signal type
    Frequency input
  • Device type
    Rotation speed monitor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IM21-14-CDTRI Description

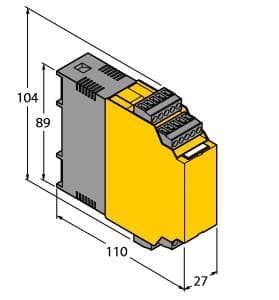

Turck IM21-14-CDTRi is a digital tachometer/rate meter belonging to the IM series, designed for single-channel rotational speed monitoring. This unit features a polycarbonate/ABS housing and is equipped with 4 x 5-pin removable terminal screw connections for connectivity. It offers protection functions against short-circuit and reverse polarity incidents. The device operates on a supply voltage range of 20-250Vdc, with nominal voltages of 24Vdc, 110Vdc, 120Vdc, and 220Vdc, and also accommodates AC supply voltages from 20-250Vac, including 24Vac, 120Vac, 220Vac, and 240Vac nominal values. Designed for DIN rail mounting, it measures 104 mm in height, 27 mm in width, and 110 mm in depth. The operational ambient air temperature range is from -25 to +70°C. With an IP20 degree of protection, it includes 1 x analog output (0-20mA / 4-20mA), 1 x digital input (NAMUR), 2 x digital outputs (SPST-NO Normally Open relay contact), and 1 x digital output (transistor).

Related documents IM21-14-CDTRI Specs

IM21-14-CDTRI English.pdf
