BIM-UNT-AN6X-0.3-PSG3M Turck Magnetic Field Sensors

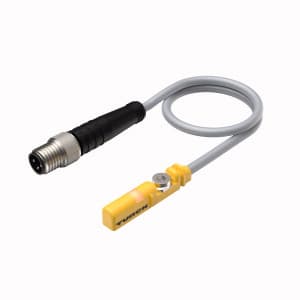

Turck BIM-UNT-AN6X-0.3-PSG3M BIM-UNT-AN6X-0.3-PSG3M Magnetic Field Sensor, For Pneumatic Cylinders
Turck

Part#:BIM-UNT-AN6X-0.3-PSG3M

Manufacturer:Turck

Alt. Part#:4685706

Product Lifecycle:Active

Get a quick Quote!

BIM-UNT-AN6X-0.3-PSG3M Magnetic Field Sensor, For Pneumatic Cylinders

About the manufacturer: Turck is one of the manufacturers that offers Magnetic Field Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BIM-UNT-AN6X-0.3-PSG3M Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    16 g
  • Protection class
    IP68
  • Ambient temperature
    -25…+70 °C
  • Cable length (L)
    0.30  m
  • Cylindrical design
    Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder
  • Housing material
    Plastic, PP
  • Construction size
    28 x 5 x 6 mm, UNT
  • Output function
    NO contact, NPN
  • Operating voltage
    10…30 VDC
  • Design
    Rectangular
  • Electrical connection
    Cable with connector, M8 × 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BIM-UNT-AN6X-0.3-PSG3M Description

Turck BIM-UNT-AN6X-0.3-PSG3M is a magnetic field cylinder position sensor/switch that falls under the BIM-UNT series. This embeddable Permaprox cylinder sensor operates with a supply voltage range of 10-30Vdc, including nominal values of 12Vdc and 24Vdc. It features a PP (Polypropylene) housing and sensing face, along with a PUR (Polyurethane) cable jacket. The sensor is designed with a T-groove body shape and is pre-wired with a 30cm / 12" pigtail PUR cable that terminates with a 3-pin M8 Picofast threaded coupler nut male connector. It offers a degree of protection rated at IP68 and can operate at a maximum switching frequency of 1kHz / 1000Hz. Suitable for T-slot mounting, this sensor can function within an ambient air temperature range of -25°C to +70°C. It has 1 x digital output (10-30Vdc; NPN; 150mA max.) and a no-load current consumption of 15mA. The sensor is equipped with protection functions against short-circuit (pulsed), overload, and reverse polarity, and operates in a Normally Open (NO) mode.

Related documents BIM-UNT-AN6X-0.3-PSG3M Specs

BIM-UNT-AN6X-0.3-PSG3M English.pdf
