BIM-UNR-AP6X-0.3-PSG3M W/M Turck Magnetic Field Sensors

BIM-UNR-AP6X-0.3-PSG3M W/M on Powermatic Associates
Turck

Part#:BIM-UNR-AP6X-0.3-PSG3M W/M

Manufacturer:Turck

Category:Magnetic Field Sensors

Alt. Part#:4685844

Product Lifecycle:Active

Get a quick Quote!

BIM-UNR-AP6X-0.3-PSG3M W/M Magnetic Field Sensor, For Pneumatic Cylinders

About the manufacturer: Turck is one of the manufacturers that offers Magnetic Field Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BIM-UNR-AP6X-0.3-PSG3M W/M Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    9 g
  • Country Of Origin
    CHE
  • HTS Code
    8536507000
  • Weight
    9 grams
  • Operating Voltage
    30 volts
  • Country of Origin
    Switzerland
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BIM-UNR-AP6X-0.3-PSG3M W/M Description

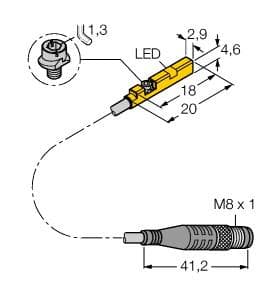

Magnetic Field Sensor, For Pneumatic Cylinders, Cable length (L) 0.3 m, For C-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Stable mounting, Magneto-resistive sensor, DC 3-wire, 11…30 VDC, NO contact, PNP output, Pigtail with M8 × 1 male connector

Related documents BIM-UNR-AP6X-0.3-PSG3M W/M Specs

BIM-UNR-AP6X-0.3-PSG3M W/M edb_4685844_eng_us.pdf

Manufacturer warranty

$127.20

Request a quote, and we will send availability within minutes.

Select Qty:

$127.20

$127.20 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
