BI5-Q08-Y1X-0.2-RS4.21T Turck Inductive Sensors

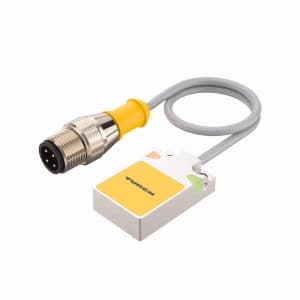

Turck BI5-Q08-Y1X-0.2-RS4.21T BI5-Q08-Y1X-0.2-RS4.21T Inductive Sensor
Turck

Part#:BI5-Q08-Y1X-0.2-RS4.21T

Manufacturer:Turck

Alt. Part#:4054090

Product Lifecycle:Active

Get a quick Quote!

BI5-Q08-Y1X-0.2-RS4.21T Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI5-Q08-Y1X-0.2-RS4.21T Turck price in the box on the right side or send a quick quote.

Product Details

  • Cable length (L)
    0.20  m
  • Approvals
    ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
  • Protection class
    IP68
  • Construction size
    32 x 20 x 8 mm, Q08
  • Rated switching distance
    5 mm
  • Housing material
    Metal, Zamak, Nickel Plated
  • Ambient temperature
    -25…+70 °C
  • Electrical connection
    Cable with connector, M12 × 1
  • Mounting
    Flush
  • Design
    Rectangular
  • Output function
    NAMUR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI5-Q08-Y1X-0.2-RS4.21T Description

Turck BI5-Q08-Y1X-0.2-RS4.21T is an intrinsically-safe inductive proximity sensor belonging to the BI...-Q08 series. This ATEX compliant, embeddable sensor features a die-cast Zinc alloy housing and is designed with a pre-wired 20cm / 8" pigtail cable that terminates with a 4-pin M12 Eurofast QD male connector. It has an 8mm thick rectangular body and offers a degree of protection rated at IP67. Operating on a supply voltage of 8.2Vdc, it has a maximum switching frequency of 1kHz / 1000Hz. The sensor can operate within an ambient air temperature range of -25°C to +70°C and includes 1 x digital output (8.2Vdc; NAMUR) with a sensing distance of 5mm.

Related documents BI5-Q08-Y1X-0.2-RS4.21T Specs

BI5-Q08-Y1X-0.2-RS4.21T English.pdf
