BI2-Q12-RZ31X Turck Inductive Sensors

BI2-Q12-RZ31X on Powermatic Associates
Turck

Part#:BI2-Q12-RZ31X

Alt. Part#:13200

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

BI2-Q12-RZ31X Turck - BI2-Q12-RZ31X Inductive Sensor

Product Details

  • Weight
    98 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    98 grams
  • Operating Voltage
    250 volts, 300 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Ambient temperature
    -25…+70 °C
  • Protection class
    IP67
  • Electrical connection
    Cable
  • Mounting
    Flush
  • Design
    Rectangular
  • Cable length (L)
    2.0  m
  • Output function
    NC contact, 2-wire
  • Housing material
    Plastic, PA12-GF30
  • Rated switching distance
    2 mm
  • Operating voltage
    35…250 VAC / 10…300 VDC

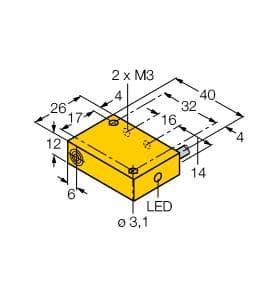

  • Construction size
    40 x 26 x 12 mm, Q12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI2-Q12-RZ31X on Powermatic Associates is $165.30. Order now.

About the product

Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, Rectangular, height 12mm, Active face, lateral, Plastic, PA12‐GF30, AC 2-wire, 35…250 VDC, DC 2-wire, 10…300 VDC, NC contact, Cable connection

BI2-Q12-RZ31X Related Documents

English-1630965592821.pdf

This item can ship within 0 day!

Manufacturer warranty

BI2-Q12-RZ31X Turck

$165.30

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$165.30

$165.30 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Turck

Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
