BI2-G12K-AP6X-0.2-RS4T Turck Inductive Sensors
Part#:BI2-G12K-AP6X-0.2-RS4T
Manufacturer:Turck
Alt. Part#:4670291
Product Lifecycle:Active
Get a quick Quote!
BI2-G12K-AP6X-0.2-RS4T Inductive Sensor
About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the BI2-G12K-AP6X-0.2-RS4T Turck price in the box on the right side or send a quick quote.
Product Details
- Country Of Origin USA
- HTS Code 8536507000
- Ambient temperature -25…+70 °C
- Protection class IP67
- Electrical connection Cable with connector, M12 × 1
- Cable length (L) 0.20 m
- Housing material Metal, CuZn, Chrome-plated
- Operating voltage 10…30 VDC
- Output function NO contact, PNP
- Construction size M12 x 1
- Rated switching distance 2 mm
- Mounting Flush
- Design Threaded barrel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
BI2-G12K-AP6X-0.2-RS4T Description

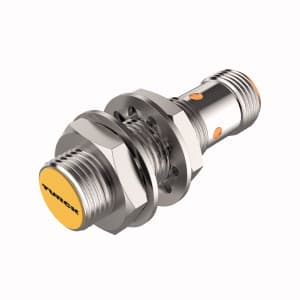

Turck BI2-G12K-AP6X-0.2-RS4T is a proximity sensor within the BI...-G12 series, featuring an inductive proximity sensor/switch design. This model comes with a short barrel that is embeddable and is constructed from chrome-plated brass housing with a PA12-GF30 (glass fiber reinforced Polyamide) sensing face. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc. The connection is facilitated by a pre-wired 20cm / 8" pigtail cable, terminating in a 4-pin M12 Eurofast QD male connector. The sensor's shape is an M12 fully threaded short cylindrical/barrel, offering a degree of protection rated at IP67. It can operate at a maximum switching frequency of 2kHz / 2000Hz and is designed to function within an ambient air temperature range of -25°C to +70°C. The BI2-G12K-AP6X-0.2-RS4T features 1 x digital output (10-30Vdc; PNP), with a sensing distance of 2mm, and includes protection functions against short-circuit (pulsed), overload, and reverse polarity. Its thread size is M12, and it operates in a Normally Open (NO) mode.
Related documents BI2-G12K-AP6X-0.2-RS4T Specs
