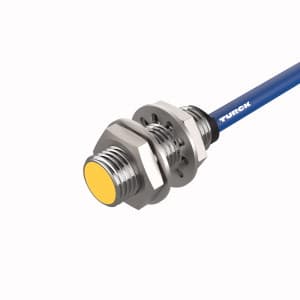

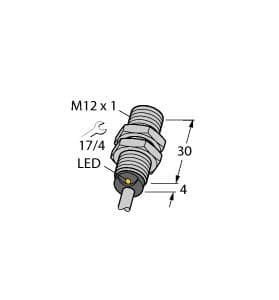

Name: BI2-G12-Y0X 7M
Brand: Turck
Price: 97.3 USD
Availability: BackOrder

EL1809

Beckhoff HD Ethercat Terminal, 16 Chnnl

Beckhoff

7

PKGTAB

Schneider Electric PKGTAB, Load center accessory, QO/Homeline, insulator kit, for ground bars

Schneider Electric

3

GV2P14

Schneider Electric GV2P14 is a Motor Protection Circuit Breaker (MPCB) within the GV2P sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload. The rated current range is 6 - 10 A, with a rated insulation voltage (Ui) of 690 V. This MPCB is designed for DIN rail or mounting plate installation, has a net width of 45 mm, and is operated via a rotary knob. Protection settings for short-circuit pickup current are fixed at 138A. The rated impulse voltage (Uimp) is 6 kV, and it supports rated active powers of 3 kW at 400/415Vac, 5 kW at 500Vac, and 5.5 kW at 690Vac. The trip current rating is 10 AT, with a frame current rating of 32 AF. It boasts a mechanical durability of 100,000 operations at no load and an electrical durability of 100,000 operations at 415Vac in AC-3 condition. Connection is facilitated through screw-clamp terminals. The rated voltage for phase-to-phase is 690 V, with all three poles protected. The trip unit type is thermal-magnetic, supporting a minimum current of 6 A and a maximum current of 10 A, classified under utilisation category A AC-3.

Schneider Electric

10

RSM-2RKM 40

RSM-2RKM 40 Turck - RSM-2RKM 40 Actuator and Sensor Tee, T-Splitter without Cable

Turck

10

SSM1A130BD

Schneider Electric SSM1A130BD is a solid state relay (SSR) within the SSM sub-range, designed to facilitate solid state/static relay functions. It operates with a control voltage (DC) range of 4-32 Vdc and can handle a rated current of 30 A. The relay is suitable for applications requiring a rated voltage (AC) from phase-to-neutral within the range of 24-280 V.

Schneider Electric

1

LC1D95M7

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

Schneider Electric

17

M9F43303

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

Schneider Electric

5
