BI2-EG08K-AG41X-H1341 Turck Inductive Sensors

Name: BI2-EG08K-AG41X-H1341
Brand: Turck
Price: 139.6 USD
Availability: BackOrder

BI2-EG08K-AG41X-H1341 on Powermatic Associates

Part#:BI2-EG08K-AG41X-H1341

Alt. Part#:4562011

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

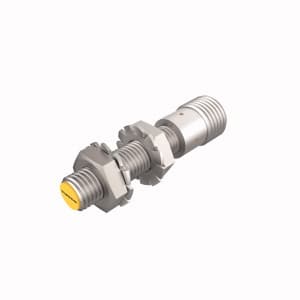

BI2-EG08K-AG41X-H1341 Turck - BI2-EG08K-AG41X-H1341 Inductive Sensor, With Increased Switching Distance

Product Details

Weight
19 g
RoHS
Yes
Country Of Origin
CHE
HTS Code
8536507000
Weight
19 grams
Operating Voltage
55 volts
Country of Origin
Switzerland
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Protection class
IP67
Special features
Sn +
Operating voltage
10…55 VDC
Ambient temperature
-25…+70 °C
Electrical connection
Connector, M12 × 1
Mounting
Flush
Construction size
M8 x 1
Housing material
Stainless steel, 1.4427 SO
Rated switching distance
2 mm
Design
Threaded barrel
Output function
NO contact, 2-wire

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI2-EG08K-AG41X-H1341 on Powermatic Associates is $139.60. Order now.

About the product

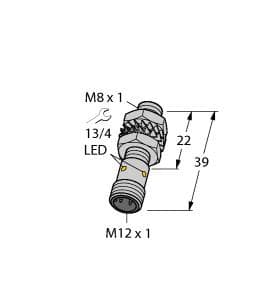

Inductive Sensor, With Increased Switching Distance, Rated switching distance 2 mm, Flush, Threaded barrel, M8 x 1, Stainless steel, 1.4427 SO, Large sensing range, DC 2-wire, 10…55 VDC, Polarized version, NO contact, M12 x 1 male connector

BI2-EG08K-AG41X-H1341 Related Documents

English-1630965293821.pdf

This item can ship within 0 day!

Manufacturer warranty

BI2-EG08K-AG41X-H1341 Turck

$139.60

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$139.60

$139.60 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
