BI15-M30-LI-EXI 7M Turck Inductive Sensors

Name: BI15-M30-LI-EXI 7M
Brand: Turck
Price: 443.9 USD
Availability: BackOrder

BI15-M30-LI-EXI 7M on Powermatic Associates

Part#:BI15-M30-LI-EXI 7M

Alt. Part#:1535555

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

BI15-M30-LI-EXI 7M Turck - BI15-M30-LI-EXI 7M Inductive Sensor, With Analog Output

Product Details

Weight
404 g
Country Of Origin
DEU
HTS Code
8536507000
Weight
404 grams
Operating Voltage
30 volts
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Country of Origin
Germany
Protection class
IP67
Approvals
ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 2D, ATEX II 3D
Cable length (L)
7.0 m
Ambient temperature
-25…+70 °C

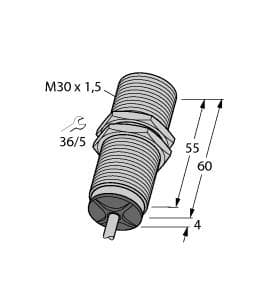

Construction size
M30 x 1.5
Housing material
Metal, CuZn, Chrome-plated
Electrical connection
Cable
Measuring range
2…10 mm
Current output
4…20 mA
Output function
Analog output
Operating voltage
14…30 VDC
Mounting
Flush
Design
Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI15-M30-LI-EXI 7M on Powermatic Associates is $443.90. Order now.

About the product

Inductive Sensor, With Analog Output, Measuring range 2 mm, Max. measuring range 10 mm, Cable length (L) 7 m, Flush, M30 × 1.5 threaded tube, Chrome-plated brass, 2‐wire, 14…30 VDC, Analog output, 4…20 mA, Cable connection, ATEX category II 1 G, Ex-zone 0, ATEX category II 2 D, Ex-zone 21

BI15-M30-LI-EXI 7M Related Documents

English-1630965336658.pdf

This item can ship within 0 day!

Manufacturer warranty

BI15-M30-LI-EXI 7M Turck

$443.90

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$443.90

$443.90 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
