BI15-EM30H-AP6X-H1141 Turck Inductive Sensors

Name: BI15-EM30H-AP6X-H1141
Brand: Turck
Price: 140.5 USD
Availability: BackOrder

BI15-EM30H-AP6X-H1141 on Powermatic Associates

Part#:BI15-EM30H-AP6X-H1141

Alt. Part#:4618592

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

BI15-EM30H-AP6X-H1141 Turck - BI15-EM30H-AP6X-H1141 Inductive Sensor, With Increased Switching Distance

Product Details

RoHS
Yes
Country Of Origin
USA
HTS Code
8536507000
Operating Voltage
10 volts, 30 volts
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Construction size
M30 x 1.5
Design
Threaded barrel
Housing material
Stainless steel, 1.4301 (AISI 304)
Mounting
Flush

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI15-EM30H-AP6X-H1141 on Powermatic Associates is $140.50. Order now.

About the product

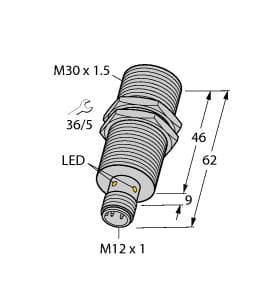

Inductive Sensor, With Increased Switching Distance, Rated switching distance 15 mm, Flush, Threaded barrel, M30 x 1.5, Stainless steel, 1.4301, Duroplast front cap, very resistant to thermal and mechanical load, Large sensing range, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
