BI10U-MT30-AP6X2-H1141 Turck Inductive Sensors

Name: BI10U-MT30-AP6X2-H1141
Brand: Turck
Price: 172.4 USD
Availability: BackOrder

BI10U-MT30-AP6X2-H1141 on Powermatic Associates

Part#:BI10U-MT30-AP6X2-H1141

Alt. Part#:1636245

Manufacturer:Turck

Category:Inductive Sensors

Product Lifecycle:Active

Product description

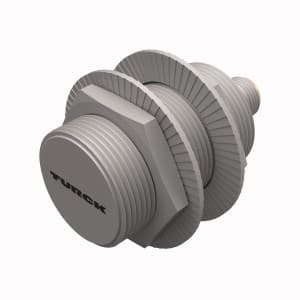

BI10U-MT30-AP6X2-H1141 Turck - BI10U-MT30-AP6X2-H1141 Inductive Sensor

Product Details

Weight
128 g
Country Of Origin
DEU
HTS Code
8536507000
Weight
128 grams
Operating Voltage
10 volts, 30 volts
Country of Origin
Germany
Ambient Temperature
-30 degrees celsius, 85 degrees celsius
Protection class
IP68
Special features
uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Electrical connection
Connector, M12 × 1
Operating voltage
10…30 VDC
Ambient temperature
-30…+85 °C
Housing material
Metal, CuZn, PTFE-coated
Output function
NO contact, PNP
Mounting
Flush
Rated switching distance
10 mm
Construction size
M30 x 1.5
Design
Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI10U-MT30-AP6X2-H1141 on Powermatic Associates is $172.40. Order now.

About the product

Inductive Sensor, Rated switching distance 10 mm, Flush, Threaded barrel, M30 x 1.5, Brass, PTFE-coated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector

BI10U-MT30-AP6X2-H1141 Related Documents

English-1630965358039.pdf
