BI1.5-H6.5K-AN6X Turck Inductive Sensors

BI1.5-H6.5K-AN6X on Powermatic Associates

Turck

Part#:BI1.5-H6.5K-AN6X

Manufacturer:Turck

Alt. Part#:46106

Product Lifecycle:Active

Get a quick Quote!

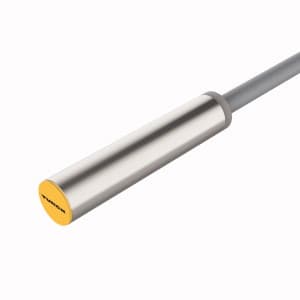

BI1.5-H6.5K-AN6X Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI1.5-H6.5K-AN6X Turck price in the box on the right side or send a quick quote.

Product Details

Weight
50 g
RoHS
Yes
Country Of Origin
CHE
HTS Code
8536507000
Weight
50 grams
Operating Voltage
10 volts, 30 volts
Country of Origin
Switzerland
Ambient Temperature
-25 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI1.5-H6.5K-AN6X Description

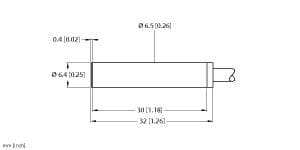

Inductive Sensor, Rated switching distance 1.5 mm, Cable length (L) 2 m, Flush, Smooth barrel, Ø 6.5 mm, Stainless steel, 1.4427 SO, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection

Related documents BI1.5-H6.5K-AN6X Specs

BI1.5-H6.5K-AN6X edb_46106_eng_us.pdf

Manufacturer warranty

$122.00

Request a quote, and we will send availability within minutes.

Select Qty:

$122.00

$122.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
