B2N5H-Q20L60-2LI2-H1151 Turck Inclination Sensors

B2N5H-Q20L60-2LI2-H1151 on Powermatic Associates
Turck

Part#:B2N5H-Q20L60-2LI2-H1151

Manufacturer:Turck

Alt. Part#:1534048

Product Lifecycle:Active

Get a quick Quote!

B2N5H-Q20L60-2LI2-H1151 Inclinometer

About the manufacturer: Turck is one of the manufacturers that offers Inclination Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the B2N5H-Q20L60-2LI2-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    60 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Housing material
    Plastic, PC
  • Ambient temperature
    -30…+70 °C
  • Protection class
    IP68/IP69K
  • Current output
    4…20 mA
  • Measuring range
    -5…5°
  • Electrical connection
    Connector, M12 × 1
  • Operating voltage
    10…30 VDC

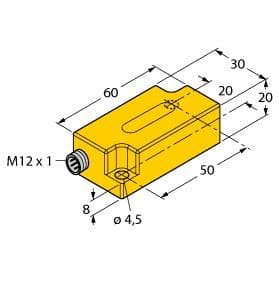

  • Construction size
    60 x 30 x 20 mm
  • Number of measuring axes
    2
  • Output function
    Analog output
  • Measuring principle
    Acceleration

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

B2N5H-Q20L60-2LI2-H1151 Description

Turck B2N5H-Q20L60-2LI2-H1151 is a sensor designed for inclination measurement within the Q20L60 housing series. This biaxial (2-axes) inclinometer operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc to 24Vdc. It features dimensions of H20mm x W30mm x D60mm and is constructed from a polycarbonate housing, ensuring durability. The sensor is equipped with a 5-pin M12 Eurofast QD male connector for connectivity and is designed for horizontal mounting. It offers a degree of protection rated at IP68, making it suitable for use in various environmental conditions with an operational ambient air temperature range of -30 to +70°C. The device provides two analog outputs (4-20mA) for clockwise measurements and one analog output (4-20mA) for counter-clockwise measurements, with a response time of 0.1 seconds and a current consumption of 50mA. It boasts a resolution of ≤0.04° and a measurement accuracy with ≤0.2% repeatability of the measuring range, capable of detecting angular positions from -5° to +5°.

Related documents B2N5H-Q20L60-2LI2-H1151 Specs

B2N5H-Q20L60-2LI2-H1151 English-1630966189976.pdf

Manufacturer warranty

$378.20

Request a quote, and we will send availability within minutes.

Select Qty:

$378.20

$378.20 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
