RXM2AB2BD Schneider Electric Industrial Automation Components

RXM2AB2BD on Powermatic Associates
Schneider Electric

Part#:RXM2AB2BD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 3 left in stock. Order Now!

Apr 29, 2025

Product description

Schneider Electric RXM2AB2BD is a miniature plug-in relay within the RXM sub-range, designed with Ag/Ni - Silver - Nickel alloy contacts. This relay features a 2C/O - DPDT (Double Pole Double Throw) contact type and operates with a control voltage of 24 Vdc. It is rated for a current of 12 A at both 250Vac (AC-1) and 28Vac (DC-1). The RXM2AB2BD offers a plug-in mounting mode and can operate within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and a current consumption of 0.038 A. This relay is equipped with an LED visual position indicator and consumes 0.9 W of power. It boasts an electrical durability of 100,000 operations with a resistive load and a mechanical durability of 10,000,000 operations at no load. Additionally, it features a Lockable Test Button (LTB) for latching.

Product Details

  • [Ie] Rated Operational Current
    12 A 28 V DC) NO IEC 12 A 250 V AC) NO IEC 6 A 28 V DC) NC IEC 6 A 250 V AC) NC IEC 12 A 28 V DC) UL 12 A 277 V AC) UL
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • Resistive Rated Load
    12 A 250 V AC 12 A 28 V DC
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • Device Presentation
    Complete product
  • Average Coil Resistance
    650 Ohm 20 °C +/- 10 %
  • Test Levels
    Level A
  • Safety Reliability Data
    B10d = 100000
  • Operating Position
    Any position
  • Rated Operational Voltage Limits
    19.2...26.4 V DC
  • Release Time
    20 ms
  • Drop-Out Voltage Threshold
    >= 0.1 Uc
  • Mechanical Durability
    10000000 cycles
  • Maximum Switching Capacity
    3000 VA/336 W
  • Operate Time
    20 ms
  • Protection Category
    RT I
  • Average Coil Consumption In W
    0.9 W
  • Electrical Durability
    100000 cycles resistive
  • Maximum Switching Voltage
    250 V IEC
  • Contacts Material
    AgNi
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Shape Of Pin
    Flat
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV 1.2/50 µs
  • Utilisation Coefficient
    20 %
  • [Uc] Control Circuit Voltage
    24 V DC
  • Product Or Component Type
    Plug-in relay
  • Range Of Product
    Harmony Electromechanical Relays
  • Series Name
    Miniature
  • Device Short Name
    RXM
  • [Ithe] Conventional Enclosed Thermal Current
    12 A -40…131 °F (-40…55 °C)
  • Status LED
    With
  • Contacts Type And Composition
    2 C/O
  • Control Type
    Lockable test button

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM2AB2BD on Powermatic Associates is $7.56. Order now.

RXM2AB2BD Related Documents

Catalog-1631030070229.pdfProduct Datasheet-1631030070237.pdf

Similar products from: Schneider Electric Industrial Automation Components

MG17466 on Powermatic Associates

MG17466

Schneider Electric

Schneider Electric MG17466 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. This 3-pole device is rated for a current of 15A and operates at a rated voltage (Ue) of 480V. It features a short circuit breaking rating of 10kA AIR at 240Vac and 5kA AIR at 480Y/277Vac. All three poles are protected, and it utilizes a C tripping curve.

2 in stock
LC1D326BL on Powermatic Associates

LC1D326BL

Schneider Electric

Schneider Electric LC1D326BL is a magnetic contactor from the Deca sub-range, featuring a low-consumption coil that consumes less than 2.4W. It is designed with ring-lugs connections and has three poles (3P; 3NO) with a rated current of 50A for AC-1 and 32A for 440Vac in AC-3. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates with a control voltage (DC) range of 19.2-30Vdc, with a nominal 24Vdc. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power ranging from 7.5kW at 220-230Vac to 18.5kW at 660-690Vac in AC-3. It also features 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower varies from 2HP at 115Vac in single-phase to 25HP at 575-600Vac in three-phase, according to UL/CSA standards. Its mechanical durability is rated at 15 million operations at no load, and its electrical durability is rated at 1.6 million operations with load. The rated voltage (AC) phase-to-phase is 690 V, and its power consumption is specified at 2.4 W.

4 in stock
ZB4BW33 on Powermatic Associates

ZB4BW33

Schneider Electric

Schneider Electric ZB4BW33 is a chromium-plated, metal bezel illuminated flush head designed for integral LED use within the XB4 sub-range. This round-shaped head features a plain lens, green light color, and operates on a spring-return (impulse/momentary) mechanism. It boasts a degree of protection rated at IP66 and has a diameter of 22 mm.

1 in stock
HDF36070 on Powermatic Associates

HDF36070

Schneider Electric

Square D by Schneider Electric HDF36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDF sub-range, designed as a PowerPact H-Frame 150 TMD 3P 70A 600Vac/250Vdc with a 14kA busbar rated at 80%. It features a Term. nut kit for fixed busbar connection on both line and load sides, with three poles (3P). This MCCB offers thermal protection for overload and magnetic protection for short-circuit scenarios. It has a rated current of 70A, a rated insulation voltage (Ui) of 750 V, and operates at rated voltages of 600Vac 600Y/347Vac and 250Vdc. The unit is designed for individual mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and operates via a toggle (manual) mode. Protection settings include over-current fixed at 70A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 70 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

1 in stock
MD-CC404-000 on Powermatic Associates

MD-CC404-000

Schneider Electric

Comm Convrtr,USB_485/422,9pin, Sub-D,R

1 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

94 in stock

This item can ship within 24h!

Manufacturer warranty

RXM2AB2BD Schneider Electric

$7.56

Your price can be lower.
Log in or Create account to check your discount

Stock:

3

Select Qty:

$7.56

$7.56 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare RXM2AB2BD with other Industrial Automation Components products

[Ie] Rated Operational Cu...

[Ui] Rated Insulation Vol...

Resistive Rated Load

Operating Rate

Net Weight

Device Presentation

Average Coil Resistance

Test Levels

Safety Reliability Data

Operating Position

Selected product

RXM2AB2BD
3 in stock
RXM2AB2BD
Schneider Electric

Schneider Electric RXM2AB2BD is a miniature plug-in relay within the RXM sub-range, designed with Ag...

[Ie] Rated Operational Current12 A 28 V DC) NO IEC 12 A 25...

[Ui] Rated Insulation Voltage250 V IEC 300 V CSA 300 V UL

Resistive Rated Load12 A 250 V AC 12 A 28 V DC

Operating Rate<= 1200 cycles/hour under lo...

Net Weight0.08 lb(US) (0.037 kg)

Device PresentationComplete product

Average Coil Resistance650 Ohm 20 °C +/- 10 %

Test LevelsLevel A

Safety Reliability DataB10d = 100000

Operating PositionAny position

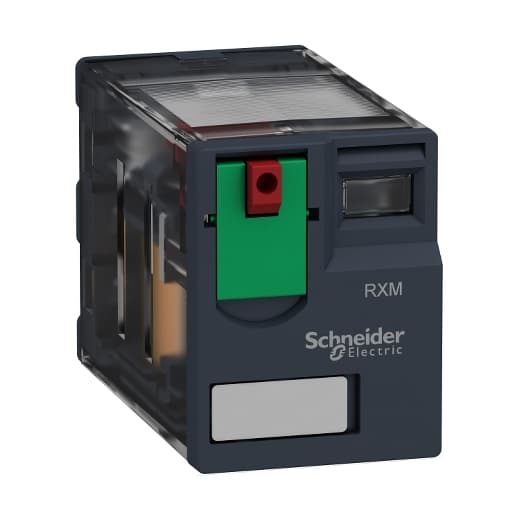

RXM2AB1P7
