Part#:QOU115

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

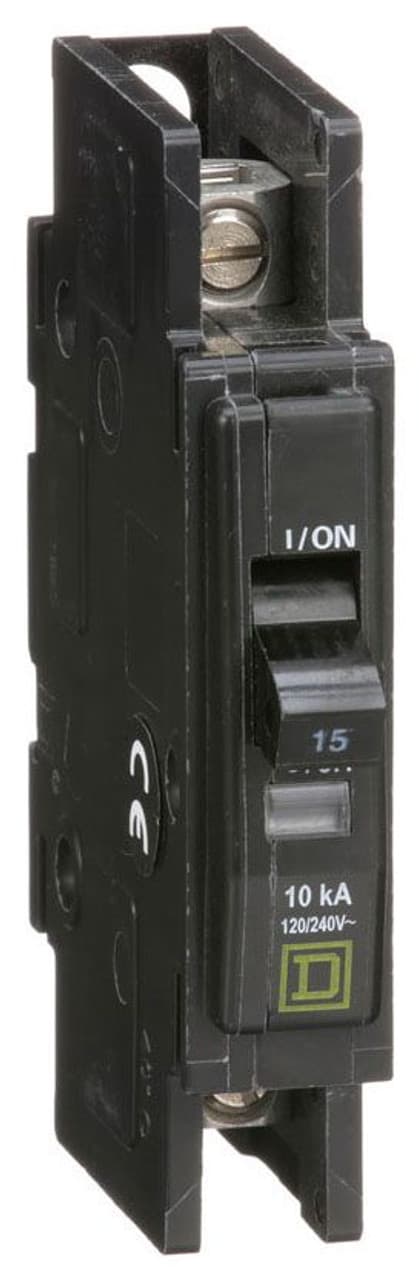

Square D by Schneider Electric QOU115 is a miniature circuit breaker (MCB) designed for unit mount installation. It features a rated current of 15A and accommodates slotted box lugs connections on both the load and line sides. This MCB is compatible with a cross-section of 14-2AWG for one aluminum or copper cable and is equipped with a single pole. It has a short circuit breaking rating of 10kA at 240Vac, 5kA at 277Vac, and 5kA at 48Vdc. The QOU115 operates with a rated voltage of 120V and 240V for AC circuits and 48Vdc for DC circuits. Its terminals are designed as box lugs.

Product Details

  • Approval:
    UL
  • Type:
    Miniature
  • Wire Size:
    14 to 2 AWG (Copper/Aluminum)
  • Terminal Type:
    Slotted Box Lug Line/Load
  • Poles:
    1
  • Mounting:
    DIN Rail/Unit/Surface/Flush
  • Amps:
    32 A
  • Interrupting Rating:
    10 kA
  • Size:
    0.75 Inch Width x 2.95 Inch Depth x 4.05 Inch Height
  • Used On:
    OEM
  • Volts:
    120/240 VAC 50/60 Hertz
  • UPC:
    78590141850
  • Series:
    QOU
  • Shipping Width:
    4.00 In.
  • Shipping Length:
    5.00 In.
  • Shipping Height:
    1.00 In.
  • Shipping Weight:
    0.40
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • Height
    4.05 in (102.87 mm)
  • Depth
    2.95 in (74.93 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Width
    0.75 in (19.05 mm)
  • Line Rated Current
    15 A
  • Mounting Mode
    Unit mount
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Range Of Product
    QOU
  • Circuit Breaker Type
    Standard
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU115 on Powermatic Associates is $40.20. Order now.
