Part#:LRD016

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

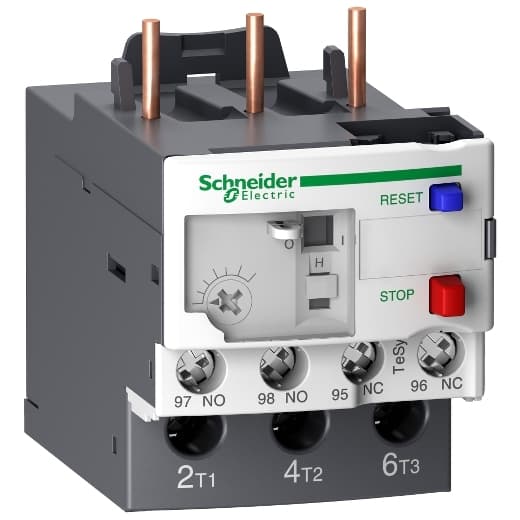

Schneider Electric LRD016, part of the LRD sub-range, is a differential thermal overload relay designed for direct connection to a contactor with outgoing cables connected via lugs and a control circuit utilizing screw-clamp connections. This 3-pole device offers protection functions classified as Class 10A, with a rated current range of 0.1-0.16 A. It features protection settings for thermal overload from 0.1 to 0.16A. The LRD016 is equipped with 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact. It supports a rated voltage (AC) for phase-to-phase connections up to 690 V, operating within a frequency range of 0-400Hz. The minimum current threshold is set at 0.1 A, with a maximum limit of 0.16 A.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
