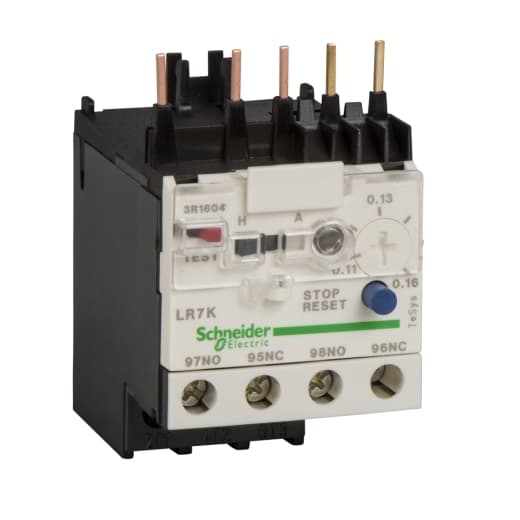

LR7K0305 Schneider Electric Thermal Overload Relays

LR7K0305 on Powermatic Associates
Schneider Electric

Part#:LR7K0305

Manufacturer:Schneider Electric

Category:Thermal Overload Relays

Product Lifecycle:Active

Product description

Schneider Electric LR7K0305 is a non-differential thermal overload relay designed for unbalanced networks, belonging to the LR7K sub-range. It features a direct connection type upstream to the contactor and screw-clamp connections for outgoing cables and the control circuit. This 3-pole relay is equipped with protection functions classified as Class 10A, with a rated current range of 0.54-0.8 A. The protection settings for thermal overload are adjustable within the same range of 0.54-0.8A. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact. The rated voltage for phase-to-phase connections is 690 V, with a minimum current threshold of 0.54 A and a maximum current capacity of 0.8 A.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

LR7K0305 Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
