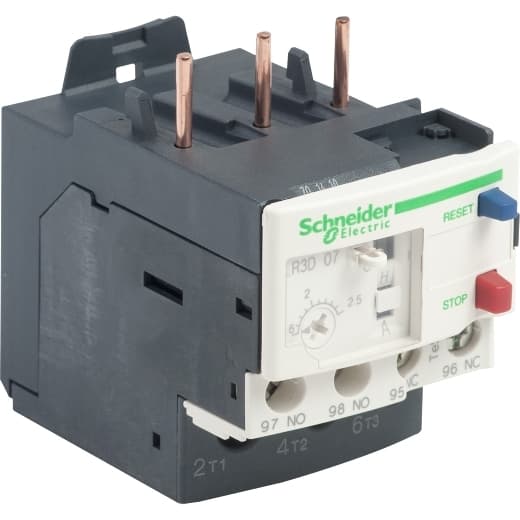

LR3D07 Schneider Electric Industrial Automation Components

Product Details

• Product Compatibility
  LC1D38 LC1D32 LC1D12 LC1D18 LC1D09 LC1D25
• Connections - Terminals
  Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 m
• Mounting Support
  Plate, with specific accessories Rail, with specific accessories Under contactor
• [Ui] Rated Insulation Voltage
  Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
• Network Type
  AC DC
• Associated Fuse Rating
  4 A gG signalling circuit 4 A BS signalling circuit
• Control Type
  Red push-button stop Blue push-button reset
• Permissible Current
  3 A 120 V AC-15 signalling circuit 0.22 A 125 V DC-13 signalling circuit
• Depth
  2.76 in (70 mm)
• Net Weight
  0.27 lb(US) (0.124 kg)
• Width
  1.77 in (45 mm)
• Height
  2.60 in (66 mm)
• Phase Failure Sensitivity
  Tripping current 130 % of Ir on two phase, the last one at 0
• Temperature Compensation
  -4…140 °F (-20…60 °C)
• [Ue] Rated Operational Voltage
  690 V AC 0...400 Hz power circuit IEC 60947-4-1
• [Uimp] Rated Impulse Withstand Voltage
  6 kV
• Auxiliary Contact Composition
  1 NO + 1 NC
• [Ith] Conventional Free Air Thermal Current
  5 A signalling circuit
• Tripping Threshold
  1.14 +/- 0.06 Ir IEC 60947-4-1
Network Frequency
0...400 Hz
Relay Application
Motor protection
Thermal Protection Adjustment Range
1.6…2.5 A
Thermal Overload Class
Class 10A IEC 60947-4-1
Product Name
TeSys LRD
Product Or Component Type
Non differential thermal overload relay
Device Short Name
LR3D
Range
TeSys
