LR3D04 Schneider Electric Industrial Automation Components

LR3D04 on Powermatic Associates
Schneider Electric

Part#:LR3D04

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

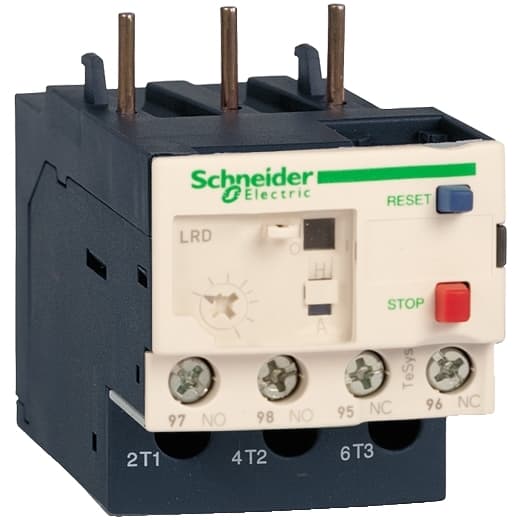

Schneider Electric LR3D04 is a non-differential thermal overload relay designed for unbalanced networks, belonging to the LR3D sub-range. It features a 3-pole configuration and offers protection functions classified under Class 10A. The relay supports a rated current range of 0.4-0.63 A with protection settings for thermal overload within the same range. Connection types include direct to contactor for upstream connections and screw-clamp for both outgoing cables and the control circuit. It is equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. The rated voltage for phase-to-phase connections is up to 690 V (0-400Hz), with a minimum current threshold of 0.4 A and a maximum of 0.63 A.

Product Details

  • Product Compatibility
    LC1D32 LC1D09 LC1D18 LC1D25 LC1D12 LC1D38
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 m
  • Mounting Support
    Plate, with specific accessories Rail, with specific accessories Under contactor
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Control Type
    Red push-button stop Blue push-button reset
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
  • Associated Fuse Rating
    4 A gG signalling circuit 4 A BS signalling circuit
  • Permissible Current
    3 A 120 V AC-15 signalling circuit 0.22 A 125 V DC-13 signalling circuit
  • Network Type
    AC DC
  • Net Weight
    0.27 lb(US) (0.124 kg)
  • Depth
    2.76 in (70 mm)
  • Width
    1.77 in (45 mm)
  • Phase Failure Sensitivity
    Tripping current 130 % of Ir on two phase, the last one at 0
  • Network Frequency
    0...400 Hz
  • Height
    2.60 in (66 mm)
  • Temperature Compensation
    -4…140 °F (-20…60 °C)
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV
  • [Ue] Rated Operational Voltage
    690 V AC 0...400 Hz power circuit IEC 60947-4-1
  • [Ith] Conventional Free Air Thermal Current
    5 A signalling circuit
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Tripping Threshold
    1.14 +/- 0.06 Ir IEC 60947-4-1
  • Thermal Overload Class
    Class 10A IEC 60947-4-1
  • Relay Application
    Motor protection
  • Thermal Protection Adjustment Range
    0.4…0.63 A
  • Product Or Component Type
    Non differential thermal overload relay
  • Device Short Name
    LR3D
  • Product Name
    TeSys LRD
  • Range
    TeSys

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LR3D04 on Powermatic Associates is $96.23. Order now.
