Part#:LDL36600U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

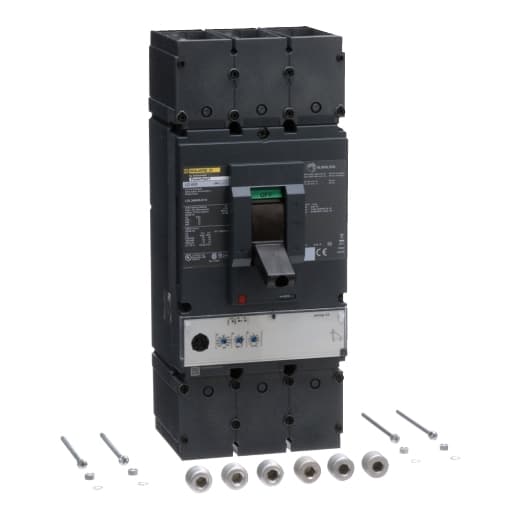

Square D by Schneider Electric LDL36600U31X is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT LDL sub-range, featuring a PowerPact L-Frame 600 Micrologic 3.3 (LI) design. It is a 3-pole (3P) device with a rated current of 600A and a rated insulation voltage (Ui) of 750V. This MCCB operates at a rated voltage (AC) of 600Vac, with a rated voltage (DC) of 250Vdc, and offers a rated operating voltage (Ue) of 690V. It is designed for individual unit mount on plate, with a net height of 382mm, a net width of 153mm, and a net depth of 171mm. The connection type includes lugs on both load and line sides, ensuring a secure connection. It provides protection with an IP40 degree of protection and operates manually via a toggle. The protection functions include long-time protection (L) adjustable from 0.3 to 1 x In (50A to 150A) and instantaneous protection (I) adjustable from 1.5 to 11 x In (900A to 6600A). The trip unit type is an electronic Micrologic Standard 3.3 (LI) with no display, and it has a trip current rating of 600 AT and a frame current rating of 600 AF. The short circuit breaking rating is specified as 25kA at 240Vac, 18kA at 480Vac, and 14kA at 600Vac, according to UL489 standards. It has a rated impulse voltage (Uimp) of 8kV and falls under utilisation category A.

Product Details

  • Depth
    6.61 in (167.89 mm)
  • Breaking Capacity Code
    D
  • Number Of Poles
    3P
  • Height
    11.3 in (287.02 mm)
  • Width
    5.5 in (139.70 mm)
  • Terminal Identifier
    AL600LS52K3
  • Continuous Current Rating
    80 %
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Product Or Component Type
    Circuit breaker
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LDL36600U31X on Powermatic Associates is $7,109.00. Order now.
