SCE-N3RFA33 Saginaw Control Enclosure Fans

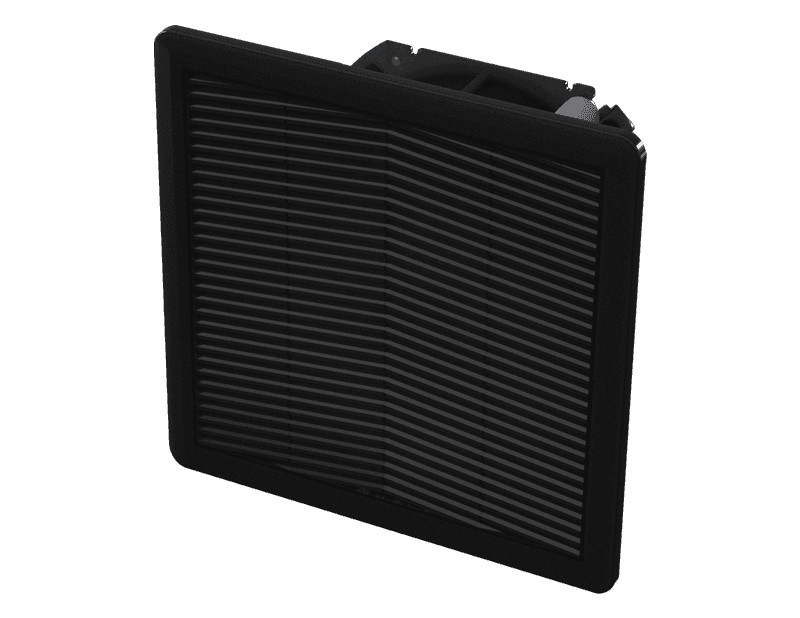

Saginaw Control SCE-N3RFA33 Fan Assembly Type 3R, Height:4.20", Width:4.20", Depth:3.10",

Saginaw Control

Part#:SCE-N3RFA33

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

Fan Assembly Type 3R, Height:4.20", Width:4.20", Depth:3.10",

About the manufacturer: Saginaw Control is one of the manufacturers that offers Enclosure Fans that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-N3RFA33 Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Width
4.20"
Depth
3.10"
Height
4.20"
Industry Standards
UL Component Recognized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-N3RFA33 Specs

SCE-N3RFA33 Saginaw - CAD files-1630958525946.zip

Manufacturer warranty
