SCE-AC10200B460V3SS6 Saginaw Control Enclosure Air Conditioners

SCE-AC10200B460V3SS6 on Powermatic Associates

Saginaw Control

Part#:SCE-AC10200B460V3SS6

Manufacturer:Saginaw Control

Product Lifecycle:Active

Get a quick Quote!

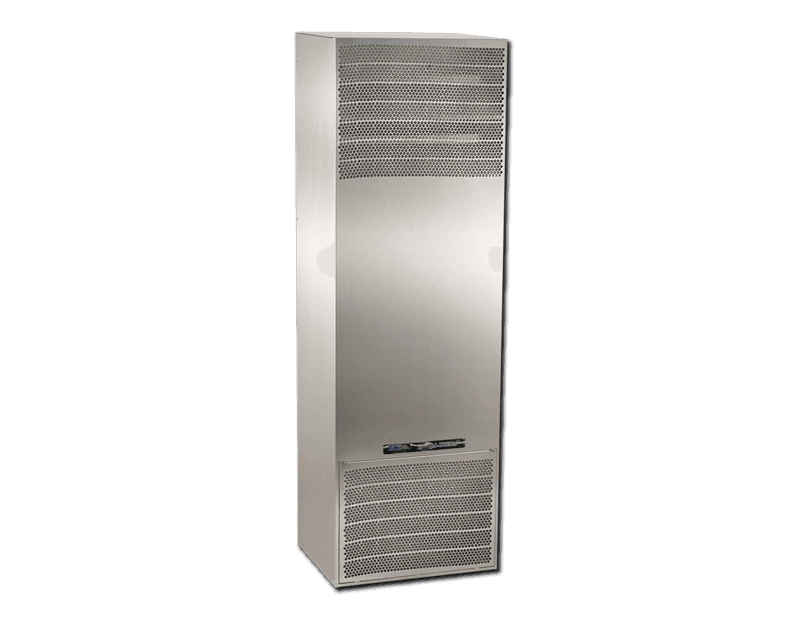

Conditioner, Air - 10200 BTU/Hr. 460 Volt, Height:61.02", Width:18.00", Depth:13.98", #4 brushed finish 316 Stainless Steel Cover

About the manufacturer: Saginaw Control is one of the manufacturers that offers Enclosure Air Conditioners that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-AC10200B460V3SS6 Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Construction
Closed Loop Cooling System Hermitically sealed Rotary Compressor Internal Components are Corrosion Resistant Specially designed Active Condensate System using PTC heater element Coils are designed as filterless units, fin spacing and hydrophobic Nano coat
Finish
#4 brushed finish 316 Stainless Steel Cover
Depth
13.98"
Width
18.00"
Height
61.02"
Industry Standards
NEMA Type 3R, 4, 4X & 12; UL Recognized Type 3R, 4, 4X & 12; IEC 60529; IP 56

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SCE-AC10200B460V3SS6 Specs

SCE-AC10200B460V3SS6 Saginaw - CAD files-1630959431050.zip

Manufacturer warranty
