SCE-12PBAI Saginaw Control Pushbutton Enclosures

Name: SCE-12PBAI
Brand: Saginaw Control

Part#:SCE-12PBAI

Manufacturer:Saginaw Control

Category:Pushbutton Enclosures

Product Lifecycle:Active

Get a quick Quote!

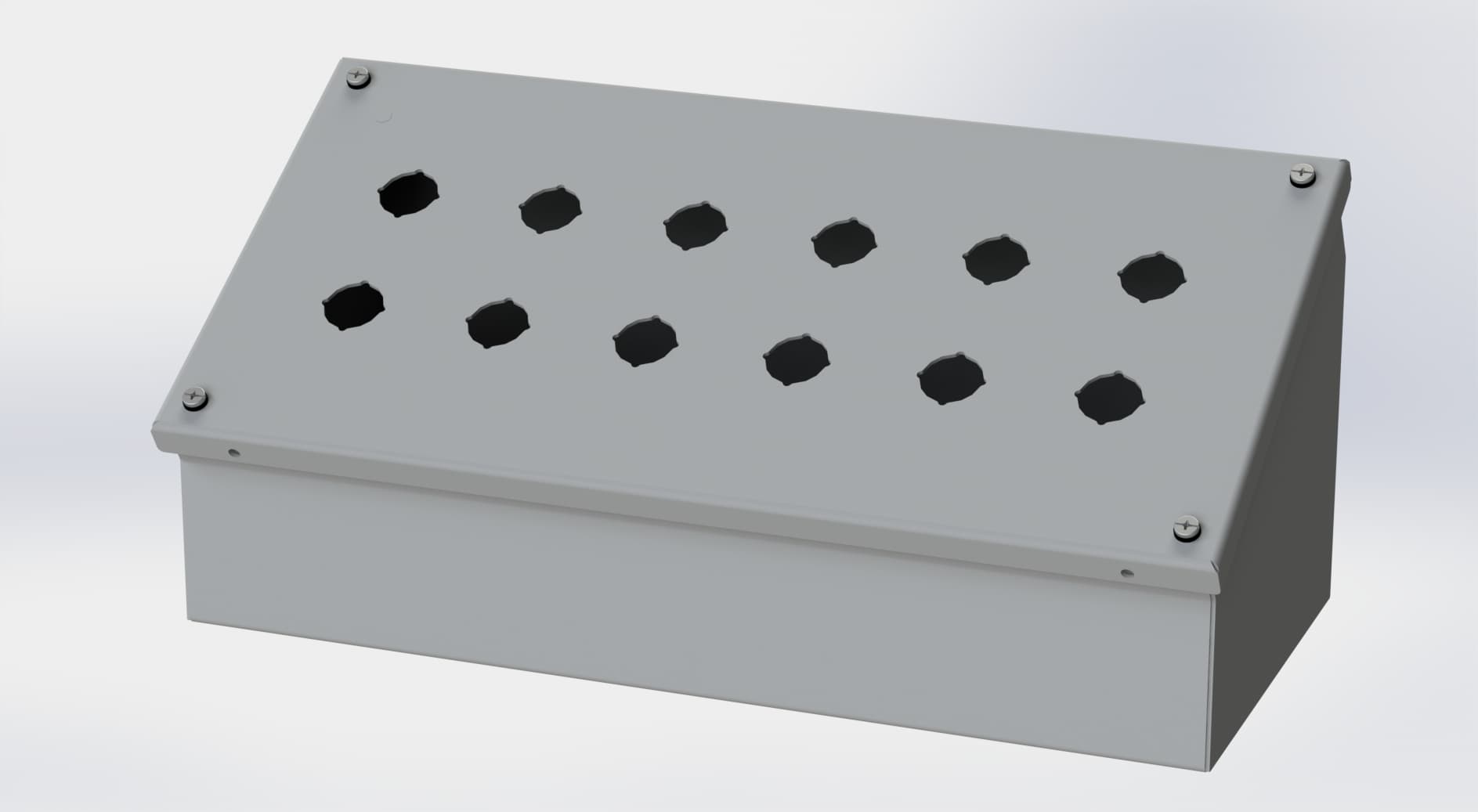

PBAI Enclosure, Height:7.25", Width:15.25", Depth:6.75", ANSI-61 gray powder coating inside and out.

About the manufacturer: Saginaw Control is one of the manufacturers that offers Pushbutton Enclosures that you can order at Powermatic Associates site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-12PBAI Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Industry Standards
NEMA Type 4, 12 and Type 13; UL Listed Type 4 and 12; CSA Type 4 and 12; IEC 60529; IP 66
Finish
ANSI-61 gray powder coating inside and out.
Construction
0.063 In. carbon steel. Continuously welded seams. Captivated cover screws thread into sealed wells. 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 0.87 In. (22.5mm). Immediate rem
Height
7.25"
Depth
6.75"
Width
15.25"
