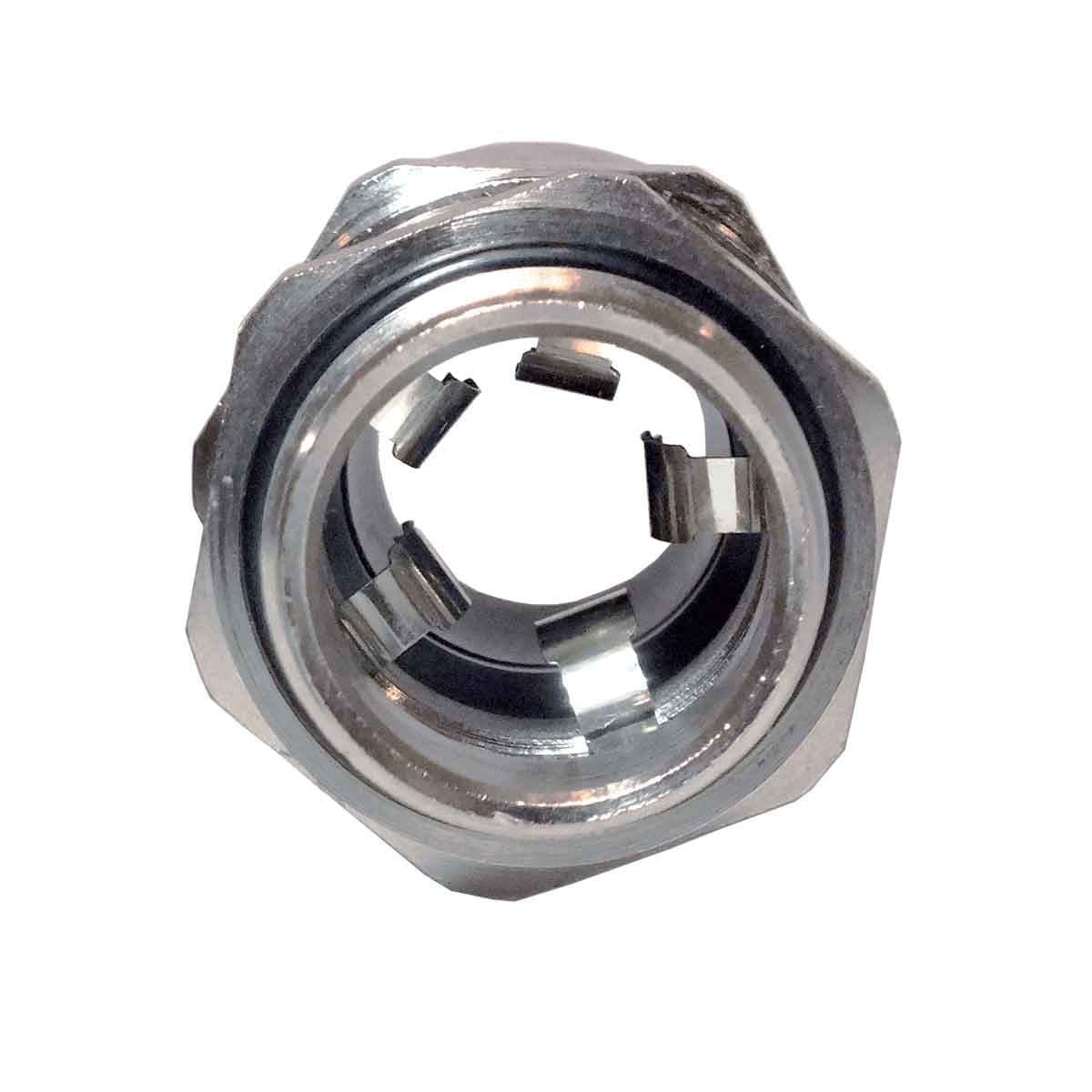

Name: EM4-20C
Brand: SAB

DKF 28-27-1

DKF 28-27-1 Turck - DKF 28-27-1 Actuator and Sensor Receptacle, Front Mount

Turck

222

G10S0000

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

Red Lion

1

S29371

Square D by Schneider Electric S29371 is a locking device designed for fixed OFF or ON locking. It functions as a padlocking device, ensuring secure locking capabilities. The dimensions of this part are a net width of 60 mm, a net height of 21 mm, and a net depth of 59 mm.

Schneider Electric

5

UBC10.241

PULS UBC10.241 is an Uninterruptible Power Supply (UPS) control module within the U-series, featuring a built-in battery with a 50% power reserve and a green status LED. This module is housed in aluminium and utilizes spring-clamp connections for installation. It measures W123mm x H124mm x D119mm and operates on a supply voltage range of 22.5Vdc to 30Vdc, with a nominal 24Vdc. The rated current is 10A at 22.5Vdc and can reach up to 15A in buffer mode for less than 5 seconds at full output voltage. It supports DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +40°C. The current consumption is 1.1A at a 24Vdc input, and it is designed for DC networks. Visual position indicators include Ready, Buffering, Inhibit, and Replace Battery. Protection functions include output overvoltage protection with a typical 32Vdc and a maximum of 35Vdc, and overload/short-circuit protection with a minimum of 17.9A and a maximum of 21A at load impedance. It is advised not to use the DC-UPS in parallel to increase output power, but paralleling two units for 1+1 redundancy is possible for higher system reliability. The output voltage is regulated at 22.5Vdc in buffer mode with a 23Vdc turn-ON. The efficiency is rated at 0.978 with a 24Vdc input, and the rated power is 360W at 24Vdc and 240W/360W in buffer mode. Power dissipation/losses are 2.9W with a 24Vdc input at 0A output current and 5.5W at 10A output current. Ripple is maintained at 20mVpp across a frequency range of 20Hz to 20MHz at 50Ω. The electrical durability is rated at 137400 hours at 40°C with a 10A output and 24Vdc input, equivalent to 15 years or 131400 hours at both 40°C with a 5A output and 25°C with a 10A output.

Puls

1

MG17416

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

Schneider Electric

33

QO1HPL

Square D by Schneider Electric QO1HPL is a padlocking device designed for loose attachment, primarily serving the function of locking.

Schneider Electric

6

RSC RKC 572-8.2M/TR2

RSC RKC 572-8.2M/TR2 Turck - RSC RKC 572-8.2M/TR2 DeviceNet™ Cordset, Extension Cordset

Turck

9
