EM2-63L SAB Cord Grips

EM2-63L on Powermatic Associates
SAB

Part#:EM2-63L

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

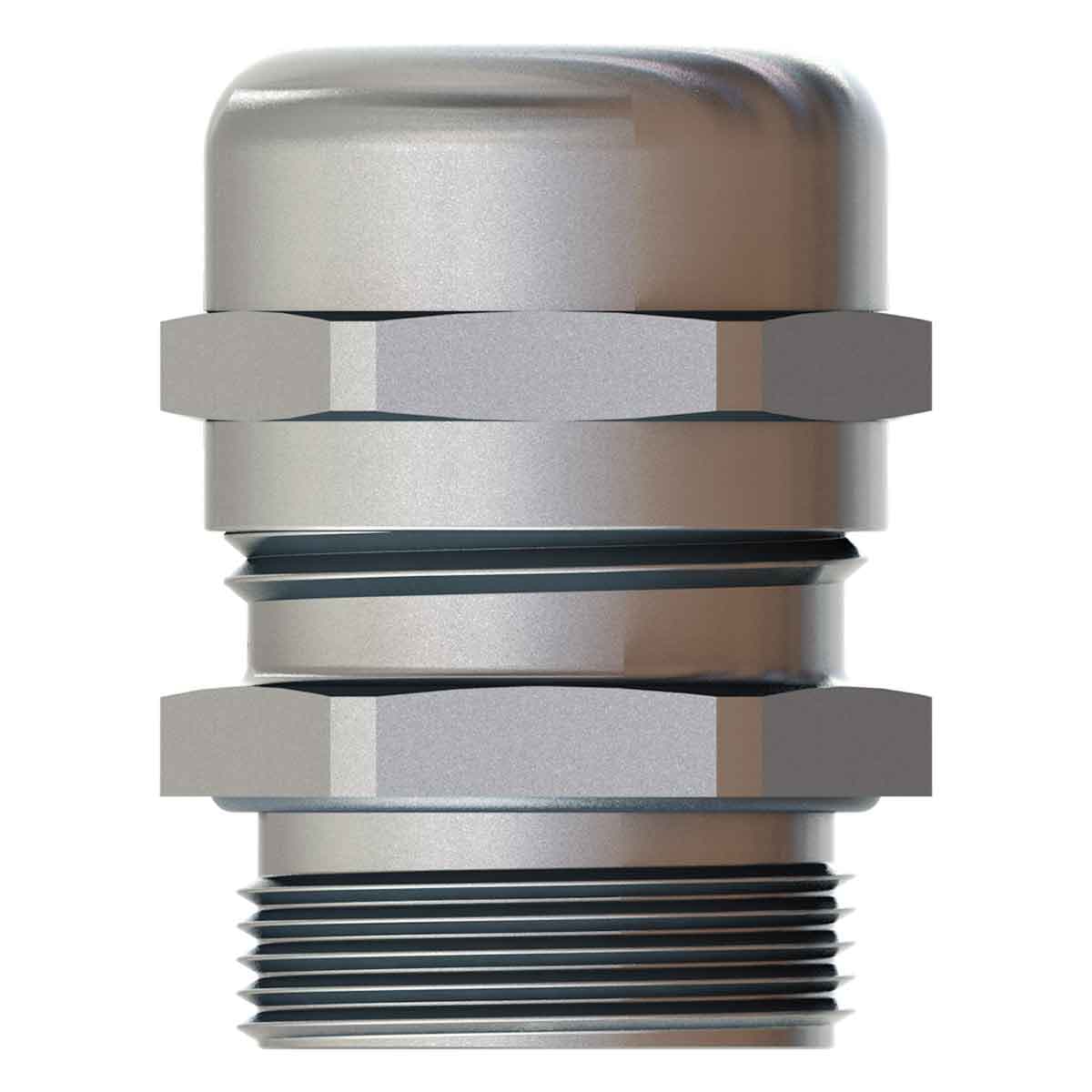

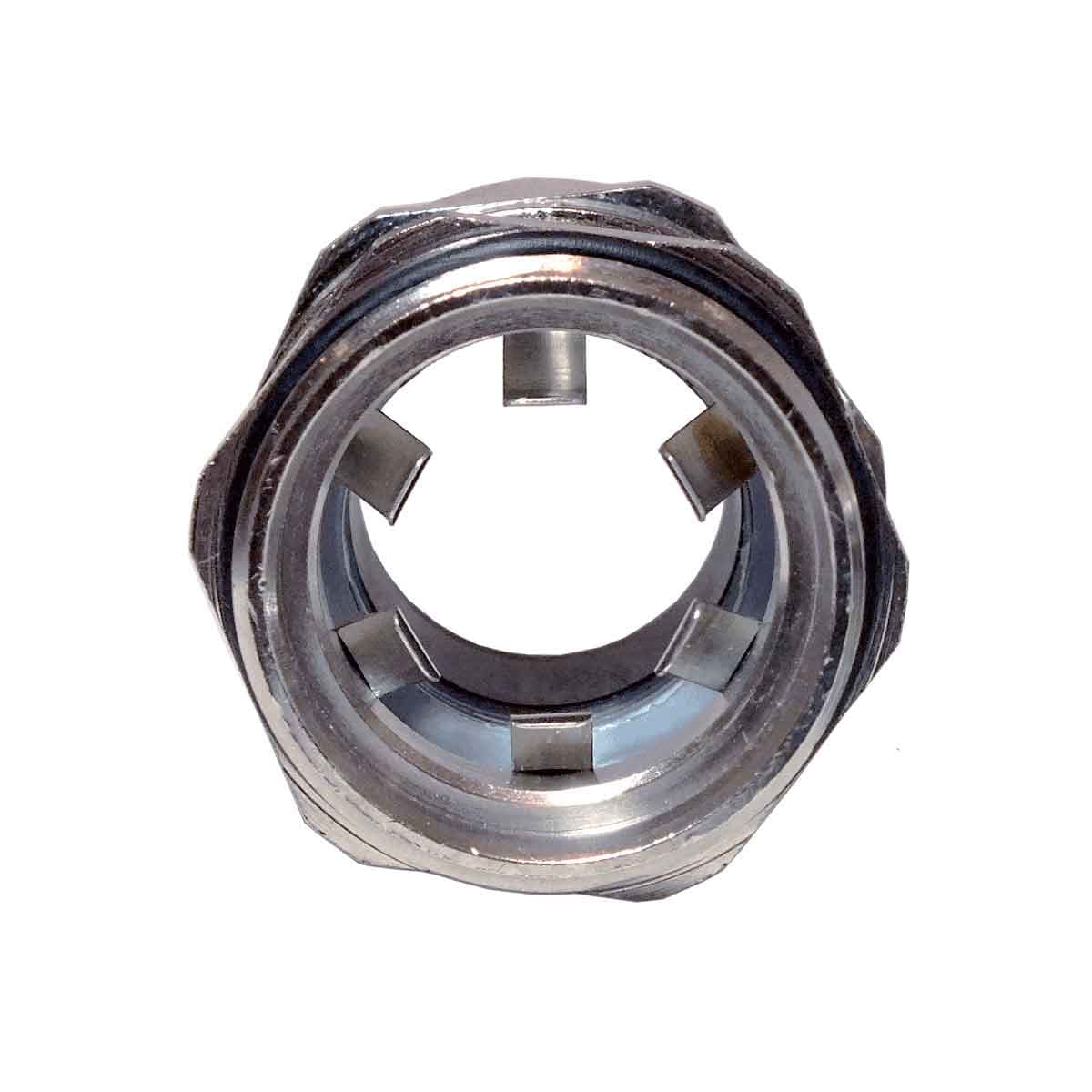

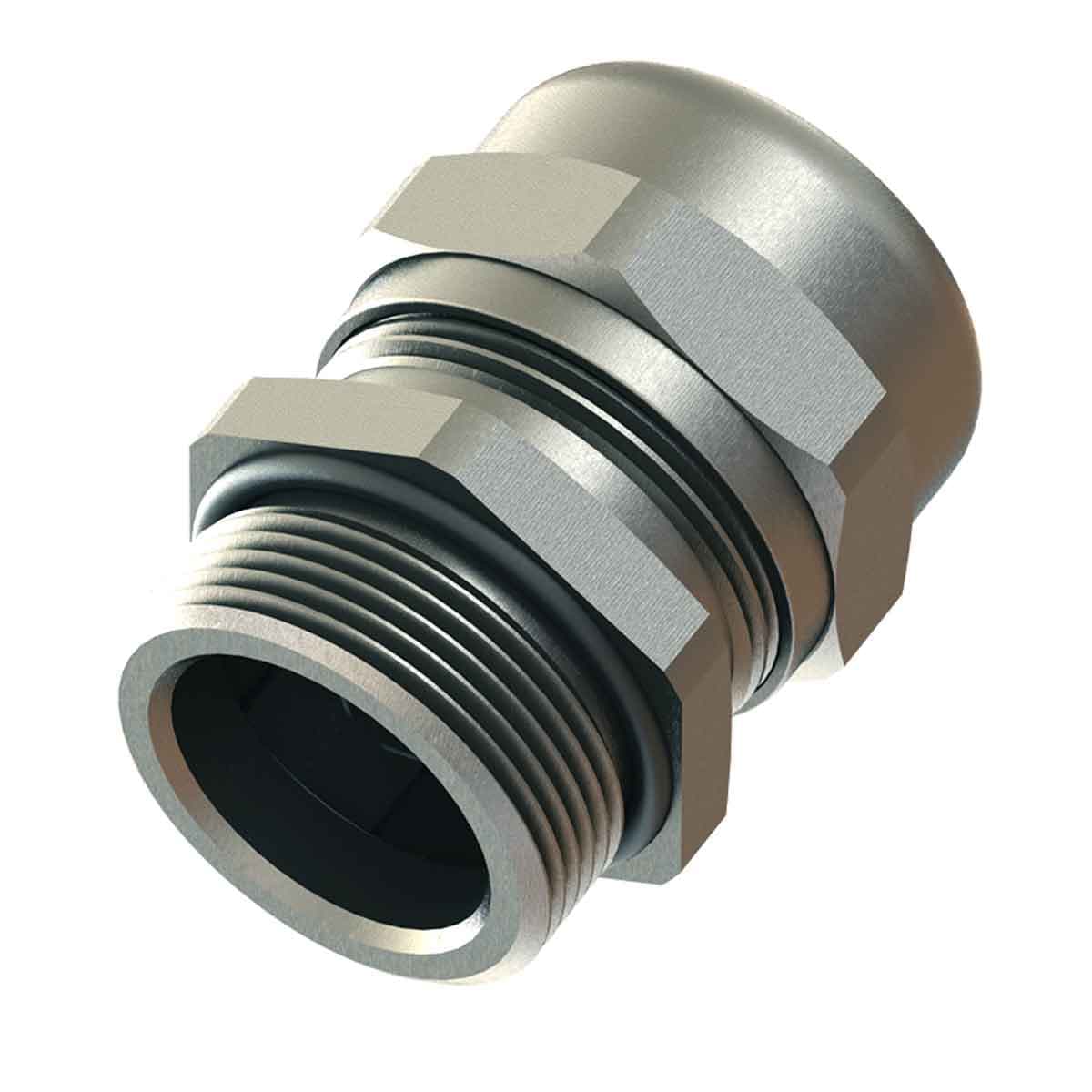

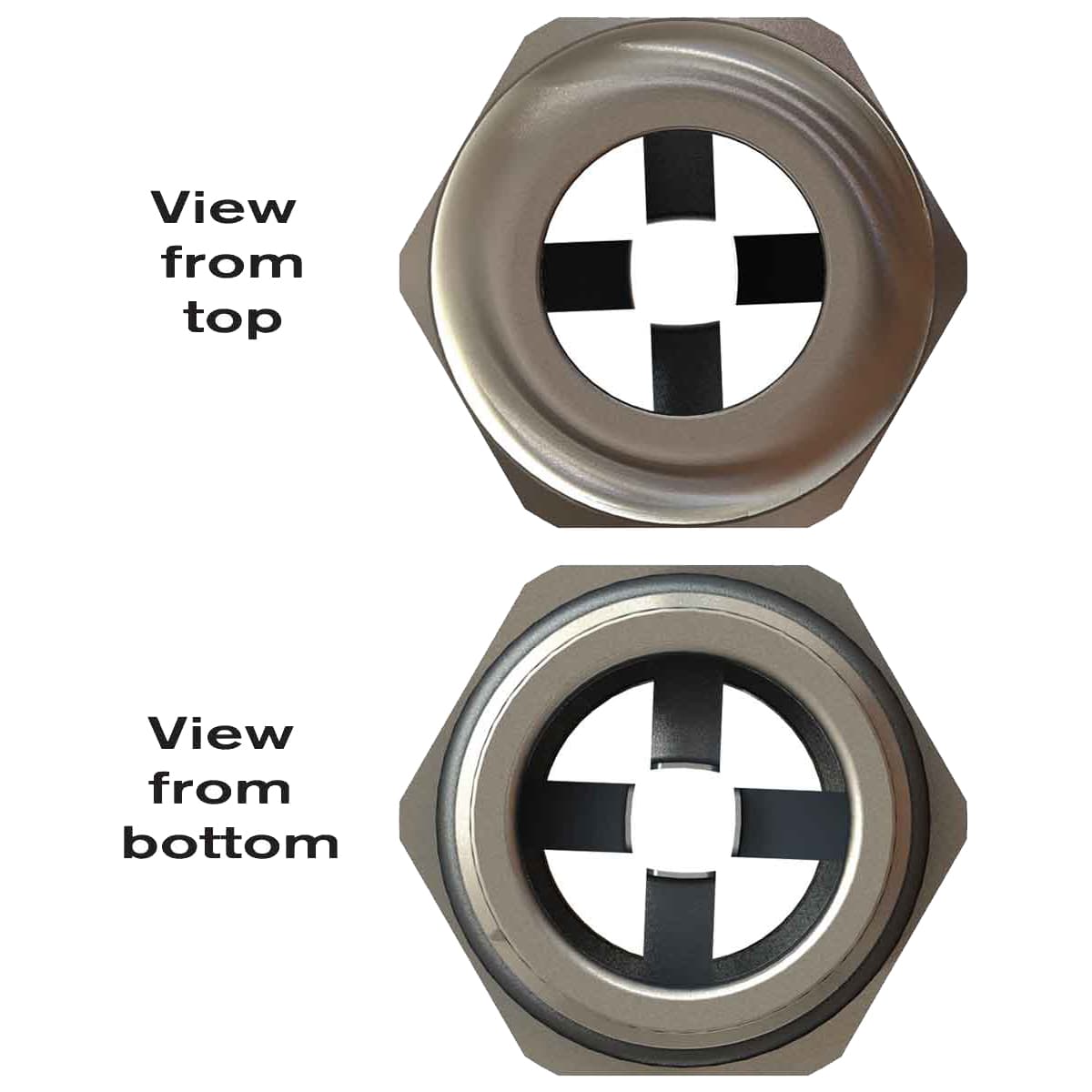

SAB EM2-63L Nickel Plated Brass EMC-2 Grounding Gland with longer M63 threads

About the manufacturer: SAB is one of the manufacturers that offers Cord Grips that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the EM2-63L SAB price in the box on the right side or send a quick quote.

Product Details

  • Material
    Nickel Plated Brass
  • Approvals
    cURus, cULus, VDE, DNV, CE, RoHS
  • RoHS
    YES
  • Outside diameter (OD)
    2.953 in
  • CSA Certification
    NO
  • UL Certification
    NO
  • CE Certification
    YES
  • Thread Size
    M63X1.5
  • Thread Type
    Metric

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EM2-63L Description

SAB EM2-63L Nickel Plated Brass EMC-2 Grounding Gland with longer Metric threads is the ideal solution for your cable management needs. Made from durable Nickel Plated Brass this cord grip has Metric M63X1.5 thread, ensuring a secure and reliable connection. Locknut LME-63 is not included with this part, and needs to be purchased separately. This cord grip is designed to accommodate cables with a maximum outer diameter of 2.953 inches, providing excellent protection and strain relief.

Related documents EM2-63L Specs

EM2-63L CG_EMC-2_Metric.pdf
