95551007 SAB Tray Cables
Part#:95551007
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

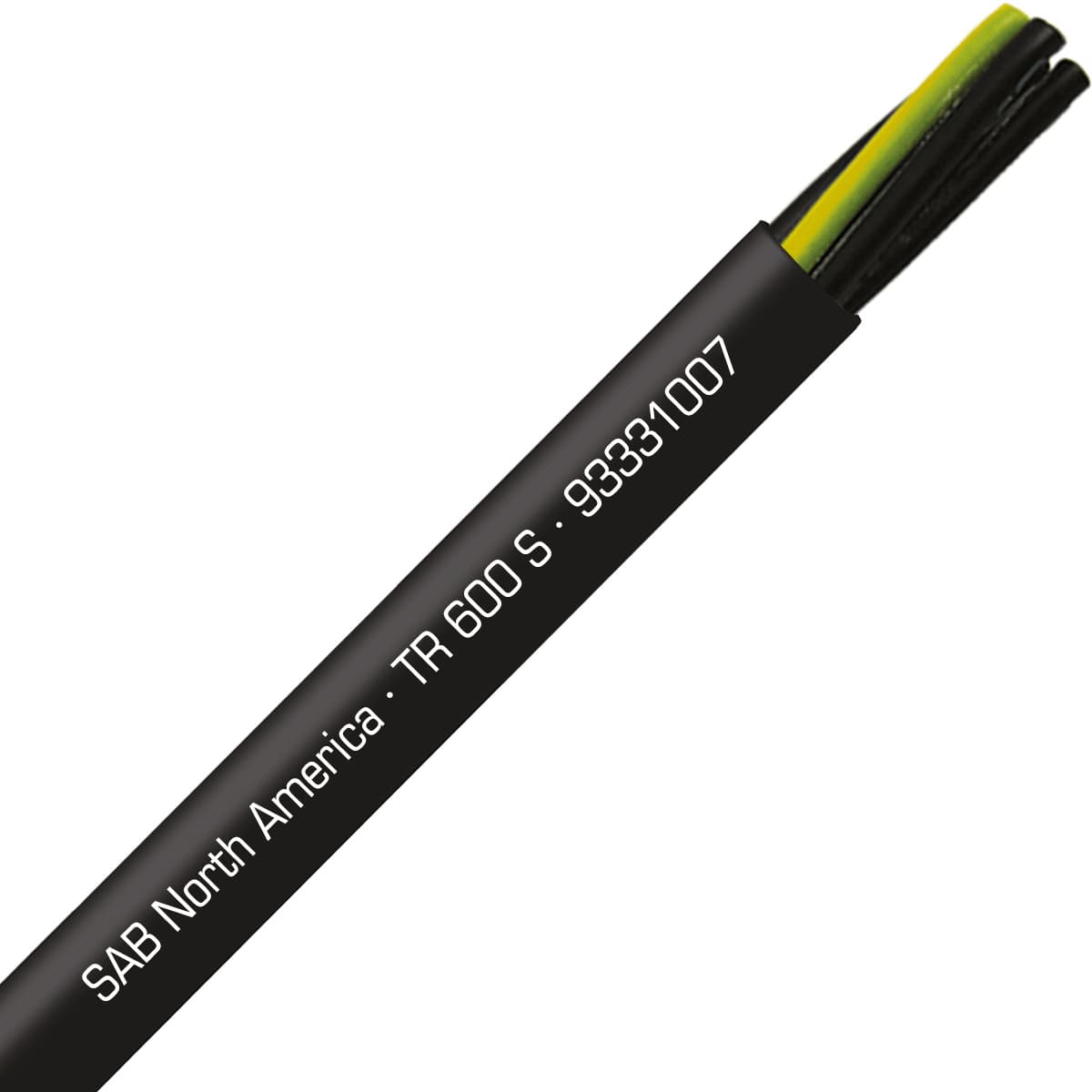

TR 600 Plus - 10 AWG/7c, UV and oil resistant flexible exposed run tray cable with reduced O.D., UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 95551007 SAB price in the box on the right side or send a quick quote.
Product Details
- Gauge 10 AWG
- Halogen Free NO
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Outside diameter (OD) 0.685 in
- Weight 169.64 g
- Shielded No
- Temperature range -25°C to +105°C
- Submersible NO
- Cable configuration 10 AWG/7c
- Approvals UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS
- UOM ft
- UV Resistant YES
- Direct Burial YES
- Number of conductors 7
- Color Black
- Insulation type PVC/Nylon
- RoHS YES
- UL Certification YES
- CSA Certification YES
- Oil Resistant Yes
- CE Certification YES
- Application Control, Power
- Voltage 600
- Stranding type bare copper strands, class 5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
95551007 Description
SAB 95551007 Tray Cable is part of TR 600 Plus product family, and is designed for Control, Power applications. This cable is 10 AWG with 7 conductors, and 10 AWG/7c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class 5 stranding. It has 0.685 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -25°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.
