93331604 SAB Tray Cables
Part#:93331604
Manufacturer:SAB
Product Lifecycle:Active
In-stock parts: 154
Sep 28, 2024

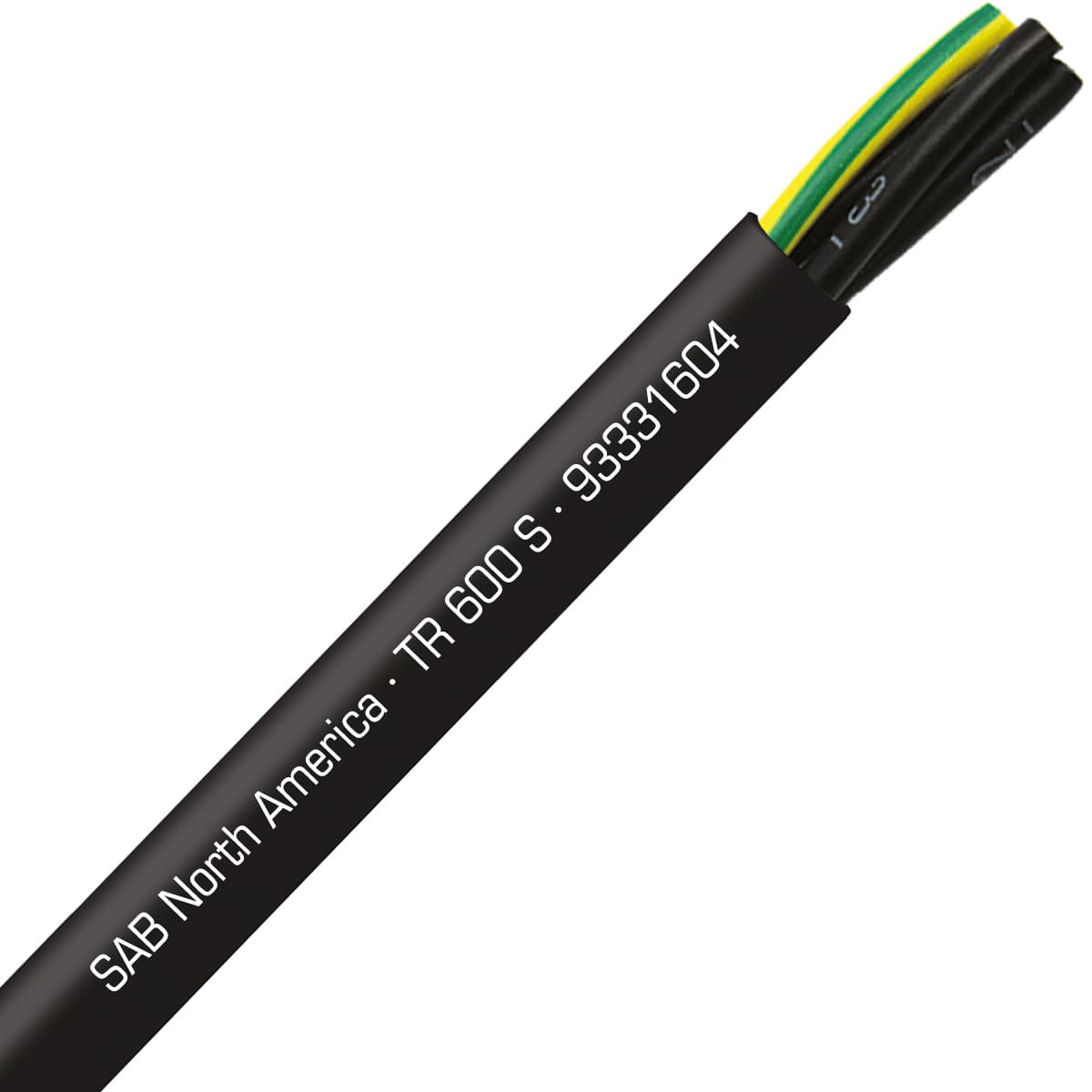

TR 600 S - 16 AWG/4c, oil resistant flexible exposed run tray cable, UL, CSA, WTTC, NFPA 79, CE RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 93331604 SAB price in the box on the right side or send a quick quote.
Product Details
- Insulation type PVC/Nylon
- CE Certification YES
- Shielded No
- Voltage 600
- Outside diameter (OD) 0.348 in
- UV Resistant YES
- Temperature range -40°C to +105°C
- CSA Certification YES
- Oil Resistant Yes
- RoHS YES
- UL Certification YES
- Halogen Free NO
- Movement Type Stationary/Flexible
- Stranding type bare copper strands, class K
- Color Black
- Chemical Resistant NO
- Direct Burial YES
- UOM ft
- Submersible YES
- Gauge 16 AWG
- Cable configuration 16 AWG/4c
- Weight 36.74 g
- Approvals UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS
- Application Control, Power
- Number of conductors 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
93331604 Description
SAB 93331604 Tray Cable is part of TR 600 S product family, and is designed for Control, Power applications. This cable is 16 AWG with 4 conductors, and 16 AWG/4c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class K stranding. It has 0.348 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, Submersible, rated for direct burial, and has following approvals: UL TC-ER, UL MTW, UL WTTC, UR AWM, CSA CIC-TC, CSA CIC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 93331604 Specs
