8340404 SAB Servo Motor Cables
Part#:8340404
Manufacturer:SAB
Category:Servo Motor Cables
Product Lifecycle:Active
Get a quick Quote!

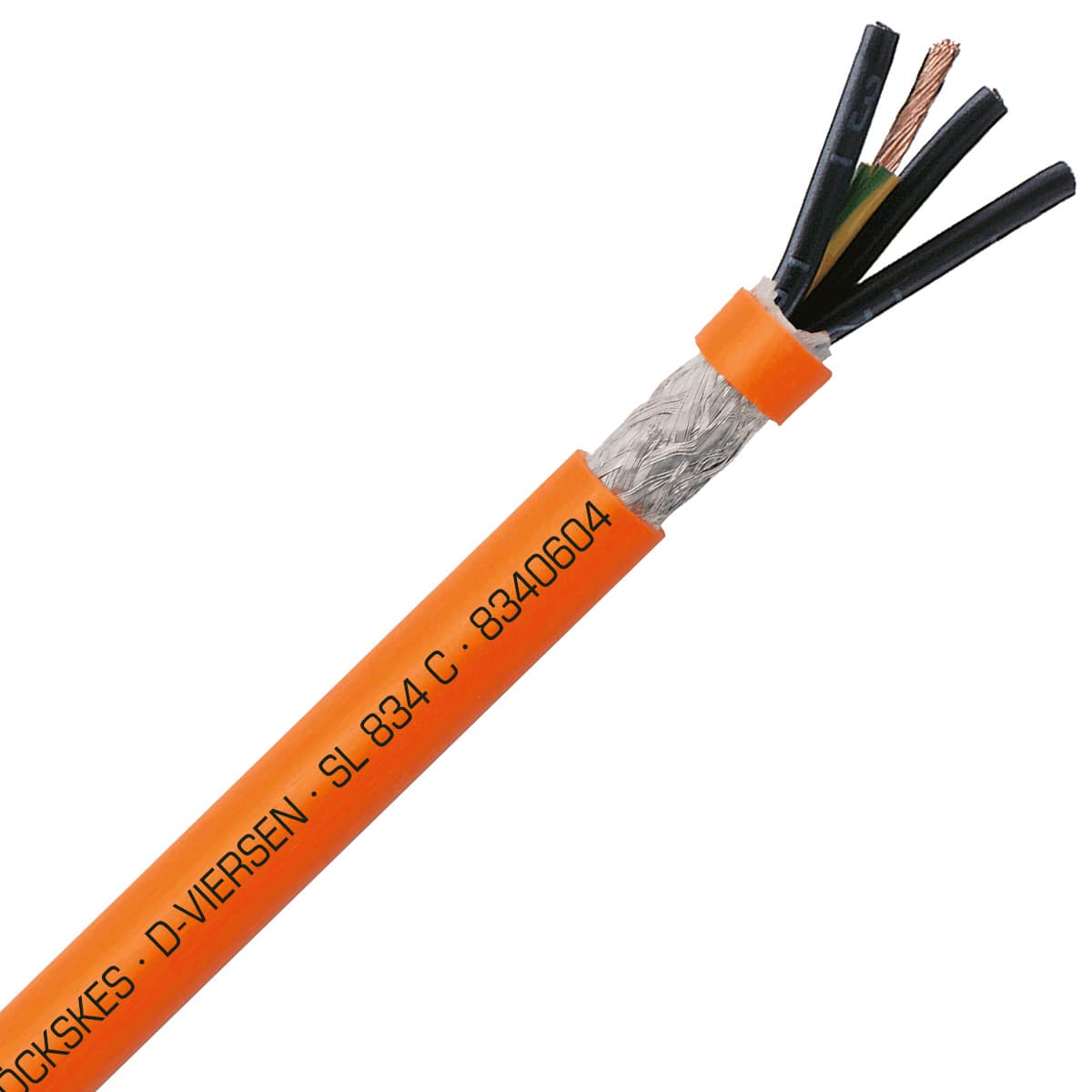

SL 834 C - 4 AWG/4c, shielded oil resistant continuous flex servo motor halogen-free cable UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 8340404 SAB price in the box on the right side or send a quick quote.
Product Details
- Color Orange
- Weight 396.89 g
- Chemical Resistant YES
- Oil Resistant Yes
- UV Resistant YES
- Halogen Free YES
- Submersible NO
- Direct Burial NO
- Movement Type Stationary/Flexible
- Application Power, Motor & Drives
- Gauge 4 AWG
- Number of conductors 4
- Cable configuration 4 AWG (≈ 760/32)/4c
- Stranding type bare copper strands, class 6
- Insulation type Special Polymer
- Shielded Yes
- Voltage 1000
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- RoHS YES
- Temperature range -50°C to +90°C
- Outside diameter (OD) 1.008 in
- UOM ft
- CSA Certification YES
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8340404 Description
SAB 8340404 Servo Motor Cable is part of SL 834 C product family, and is designed for Power, Motor & Drives applications. This cable is 4 AWG with 4 conductors, and shielded 4 AWG (≈ 760/32)/4c cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper strands, class 6 stranding. It has 1.008 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.
Related documents 8340404 Specs
