1281602 SAB High Temperature Cables
Part#:1281602
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

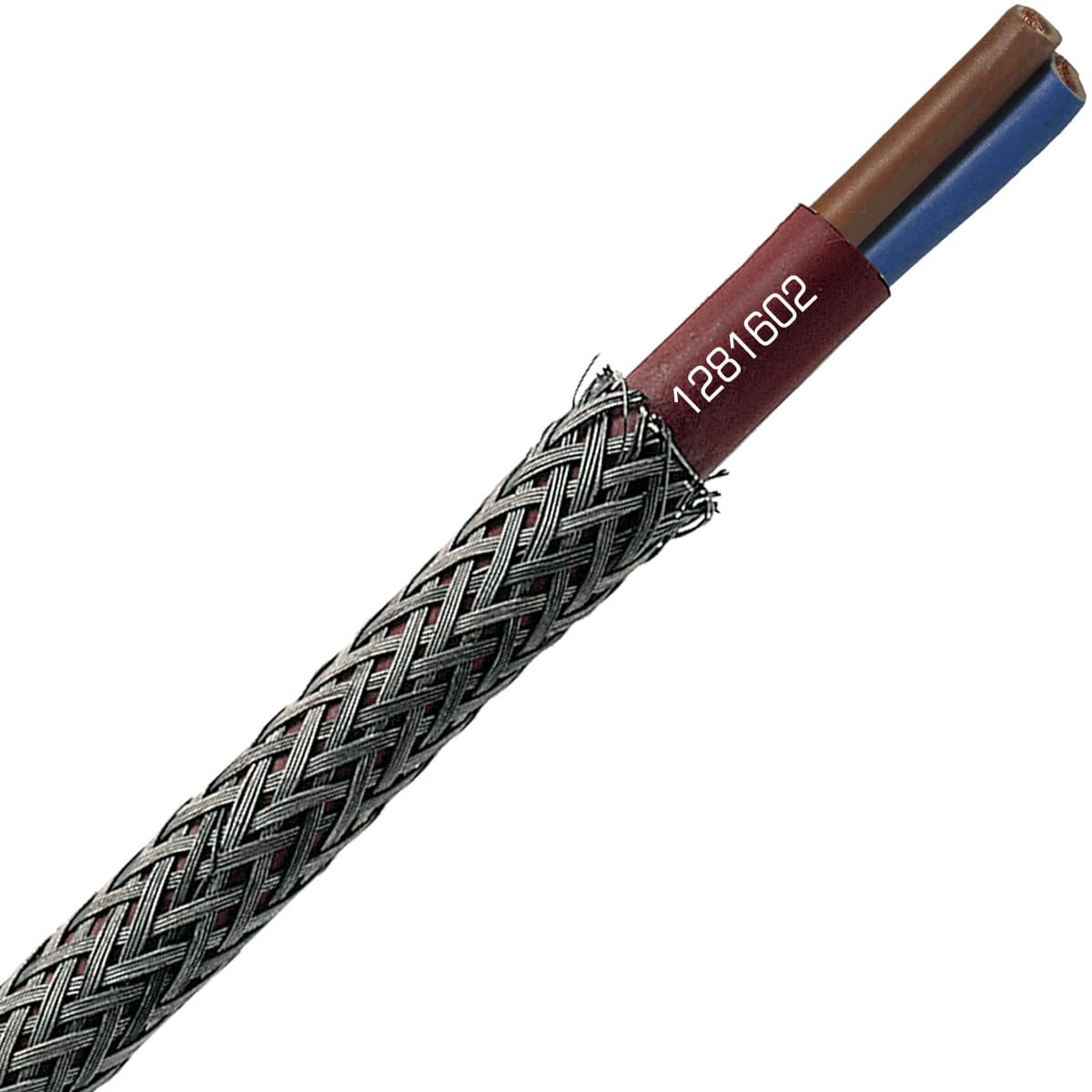

SC 600 HDTRS - 16 AWG/2c, high temperature steel wire shield silicone cable, UL CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1281602 SAB price in the box on the right side or send a quick quote.
Product Details
- UV Resistant NO
- Voltage 600
- Oil Resistant No
- Color Reddish Brown
- UL Certification YES
- Halogen Free YES
- Direct Burial NO
- Shielded Yes
- UOM ft
- Weight 27.22 g
- Submersible NO
- Gauge 16 AWG
- Insulation type Besilen (silicone)
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Stranding type tinned copper strands, class 5
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- Number of conductors 2
- RoHS YES
- CSA Certification YES
- Application Control, Power
- Cable configuration 16 AWG (≈ 27-29/30)/2c
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- Outside diameter (OD) 0.311 in
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1281602 Description
SAB 1281602 High Temperature Cable is part of SC 600 HDTRS product family, and is designed for Control, Power applications. This cable is 16 AWG with 2 conductors, and shielded 16 AWG (≈ 27-29/30)/2c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.311 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
