1271912 SAB High Temperature Cables
Part#:1271912
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

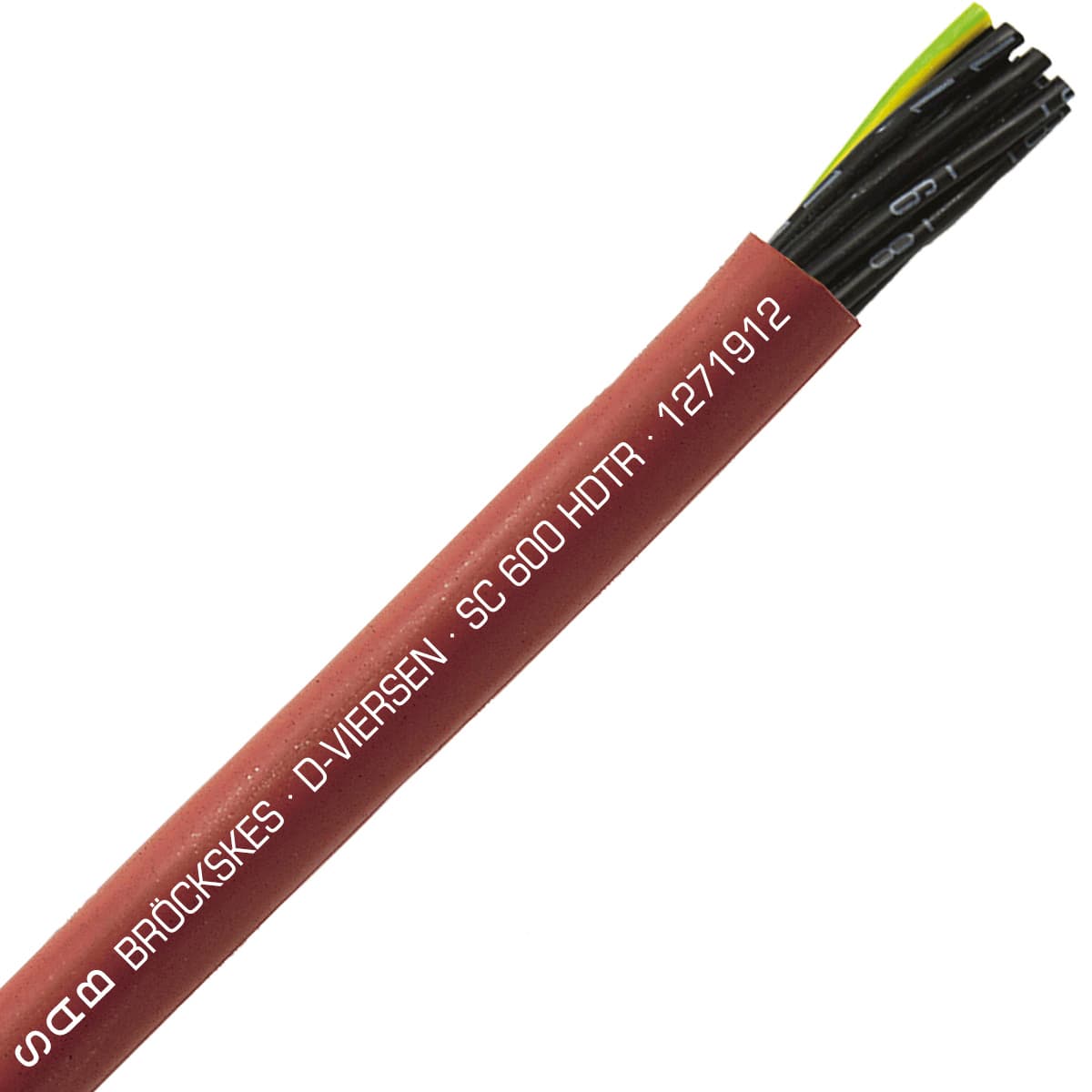

SC 600 HDTR - 19 AWG/12c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1271912 SAB price in the box on the right side or send a quick quote.
Product Details
- CSA Certification YES
- UV Resistant NO
- Movement Type Stationary/Flexible
- Number of conductors 12
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UOM ft
- Insulation type Besilen (silicone)
- Voltage 600
- CE Certification YES
- Oil Resistant No
- Application Control, Power
- Shielded No
- RoHS YES
- Outside diameter (OD) 0.417 in
- Halogen Free YES
- Gauge 19 AWG
- Cable configuration 19 AWG (≈ 23/32)/12c
- Color Reddish Brown
- Chemical Resistant NO
- Direct Burial NO
- Stranding type tinned copper strands, class 5
- Weight 47.17 g
- Submersible NO
- Temperature range -40°C to +180°C; +200°C (2000h); +250°C (short-term use)
- UL Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1271912 Description
SAB 1271912 High Temperature Cable is part of SC 600 HDTR product family, and is designed for Control, Power applications. This cable is 19 AWG with 12 conductors, and 19 AWG (≈ 23/32)/12c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.417 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
