1251412 SAB High Temperature Cables
Part#:1251412
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

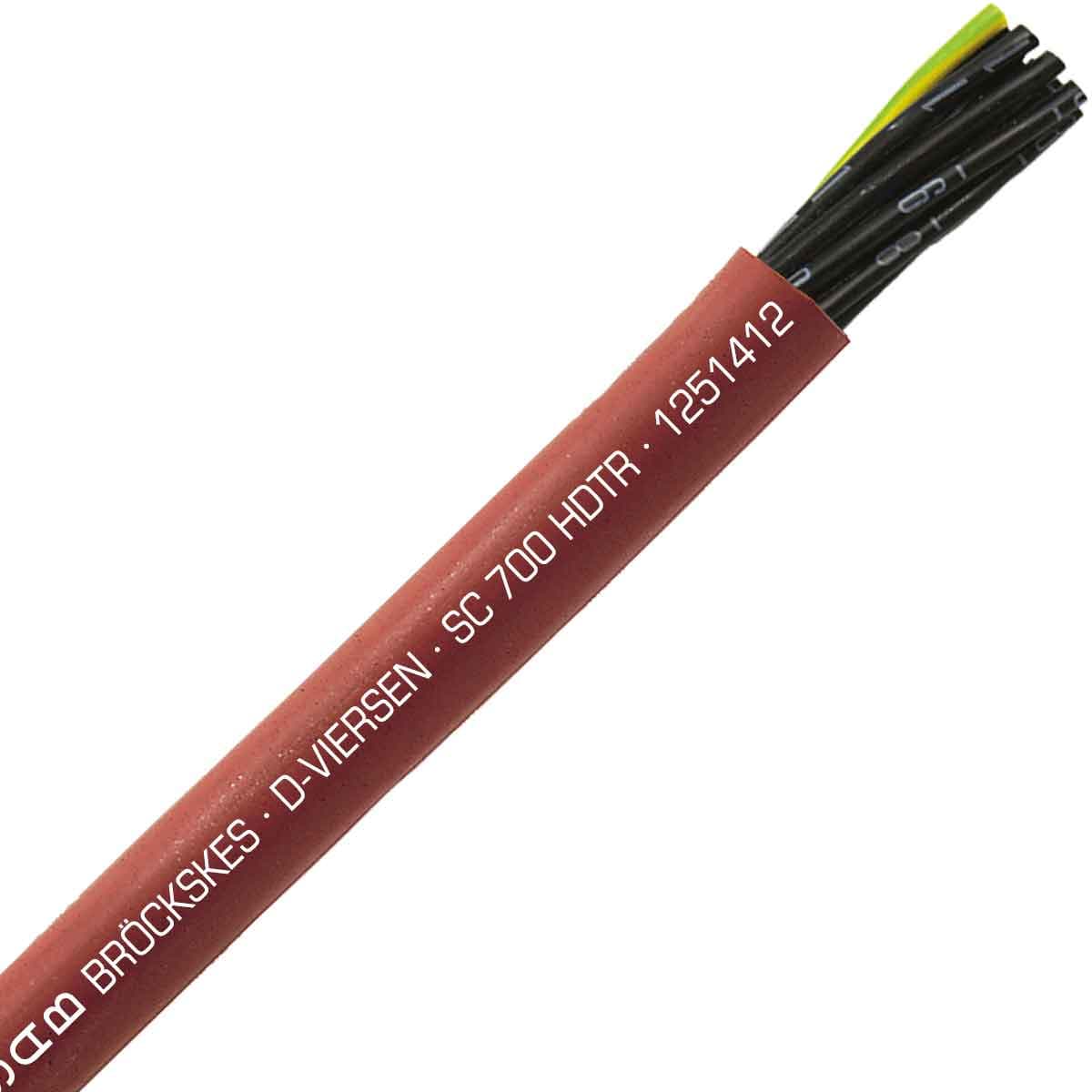

SC 700 HDTR - 14 AWG/12c, halogen-free high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1251412 SAB price in the box on the right side or send a quick quote.
Product Details
- Temperature range -40°C to +200°C; +250°C (short-term use)
- CE Certification YES
- Halogen Free YES
- Gauge 14 AWG
- Insulation type Besilen (silicone)
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UL Certification YES
- Cable configuration 14 AWG (≈ 46/30)/12c
- Voltage 600
- UOM ft
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Number of conductors 12
- UV Resistant NO
- Application Control, Power
- Shielded No
- RoHS YES
- CSA Certification YES
- Weight 128.37 g
- Submersible NO
- Oil Resistant No
- Direct Burial NO
- Stranding type nickel plated copper strands, class 5
- Color Reddish Brown
- Outside diameter (OD) 0.642 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1251412 Description
SAB 1251412 High Temperature Cable is part of SC 700 HDTR product family, and is designed for Control, Power applications. This cable is 14 AWG with 12 conductors, and 14 AWG (≈ 46/30)/12c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and nickel plated copper strands, class 5 stranding. It has 0.642 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +200°C; +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
