1241402 SAB High Temperature Cables

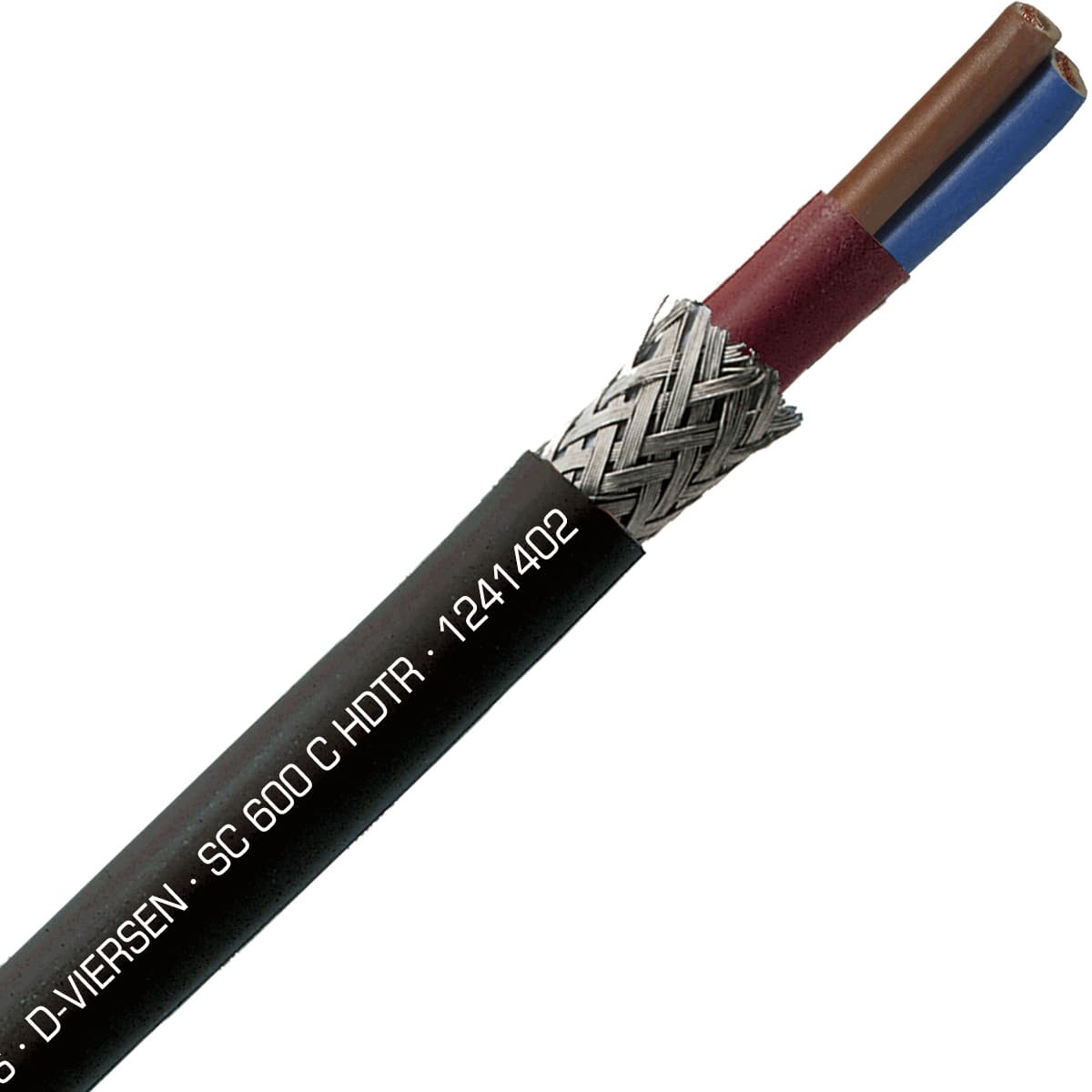

SAB 1241402 SC 600 C HDTR - 14 AWG/2c, shielded halogen free high temperature silicone cable, UL, CSA, CE, RoHS
SAB

Part#:1241402

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SC 600 C HDTR - 14 AWG/2c, shielded halogen free high temperature silicone cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 1241402 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Black
  • Weight
    63.96 g
  • Chemical Resistant
    NO
  • Oil Resistant
    No
  • UV Resistant
    NO
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    14 AWG
  • Number of conductors
    2
  • Cable configuration
    14 AWG (≈ 46/30)/2c
  • Stranding type
    tinned copper strands, class 5
  • Insulation type
    Besilen (silicone)
  • Shielded
    Yes
  • Voltage
    600
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +180°C; +200°C (2000 h); +250°C (short-term use)
  • Outside diameter (OD)
    0.441 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1241402 Description

SAB 1241402 High Temperature Cable is part of SC 600 C HDTR product family, and is designed for Control, Power applications. This cable is 14 AWG with 2 conductors, and shielded 14 AWG (≈ 46/30)/2c cable configuration. Featuring Black color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.441 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000 h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 1241402 Specs

1241402 SC_600_C_HDTR.pdf
