1241205 SAB High Temperature Cables
Part#:1241205
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

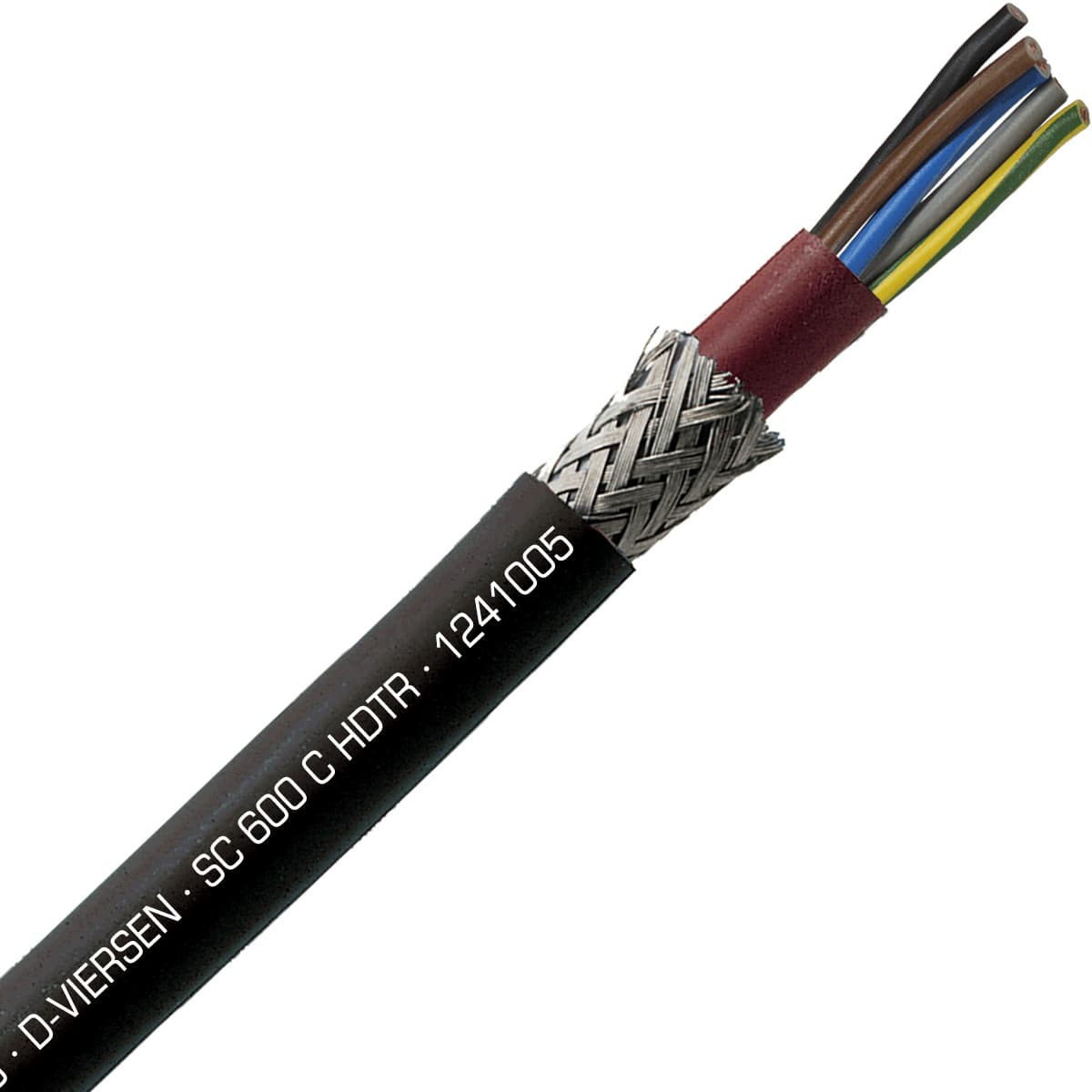

SC 600 C HDTR - 12 AWG/5c, shielded halogen free high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Powermatic Associates site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1241205 SAB price in the box on the right side or send a quick quote.
Product Details
- Color Black
- Weight 146.51 g
- Chemical Resistant NO
- Oil Resistant No
- UV Resistant NO
- Halogen Free YES
- Submersible NO
- Direct Burial NO
- Movement Type Stationary/Flexible
- Application Control, Power
- Gauge 12 AWG
- Number of conductors 5
- Cable configuration 12 AWG (≈ 52/28)/5c
- Stranding type tinned copper strands, class 5
- Insulation type Besilen (silicone)
- Shielded Yes
- Voltage 600
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- RoHS YES
- Temperature range -40°C to +180°C; +200°C (2000 h); +250°C (short-term use)
- Outside diameter (OD) 0.657 in
- UOM ft
- CSA Certification YES
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1241205 Description
SAB 1241205 High Temperature Cable is part of SC 600 C HDTR product family, and is designed for Control, Power applications. This cable is 12 AWG with 5 conductors, and shielded 12 AWG (≈ 52/28)/5c cable configuration. Featuring Black color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.657 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000 h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 1241205 Specs
