Powermatic Associates Logo

T4820211 Red Lion Industrial Automation Components

T4820211 on Powermatic Associates
Red Lion

Part#:T4820211

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

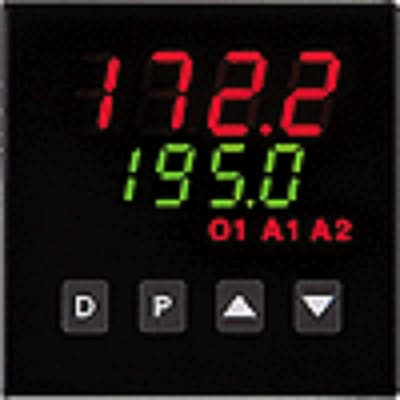

Digital temperature controller with logic/S.S.R. main (or ALARM1) output + main analog output + 1 logic/S.S.R. ALARM2 (or cooling) output - 1/16 DIN (48x48mm) - Red Lion (Process controllers T48 temperature controllers series) - with 1 x analog input (The

Product Details

  • Product series / family name
    Process controllers
  • Design
    logic/S.S.R. main (or ALARM1) output main analog output 1 logic/S.S.R. ALARM2 (or cooling) output 1/16 DIN (48x48mm)
  • Sub-range name
    T48 temperature controllers series
  • Functions
    Digital temperature controller
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Order code / Manufacturer SKU
    T4820211
  • Analog inputs
    1 x analog input (Thermocouple types T; E; J; K; R; S; B; N / Pt100 RTDs / 100ms sample period; 300-400ms response time) (Main temperature input; 0.1...1° accuracy)
  • Degree of protection
    IP65 NEMA 4X
  • Main function
    Temperature controller (Digital)
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Analog outputs
    1 x analog output (4-20mA / 0-10Vdc; 1/2800...1/3500 conversion resolution) (Main output)
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    24Vac
  • Digital outputs
    1 x digital output (S.S.R.) (O1 or ALARM1) 1 x digital output (S.S.R.) (O2 / ALARM2)
  • Compliant with standard(s)
    CE IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL recognized RoHS compliant
  • Benefits
    PID control with reduced overshoot On demand auto-tuning of PID control settings NEMA 4x / IP65 bezel Dual led displays for simultaneous indication of temperature and setpoint Status indicators for outputs and control modes Accepts 10 types of sensor inpu

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
