PISA11.401 Puls Protection Modules (DC)

PISA11.401 on Powermatic Associates
Puls

Part#:PISA11.401

Manufacturer:Puls

Category:Protection Modules (DC)

Product Lifecycle:Active

Product description

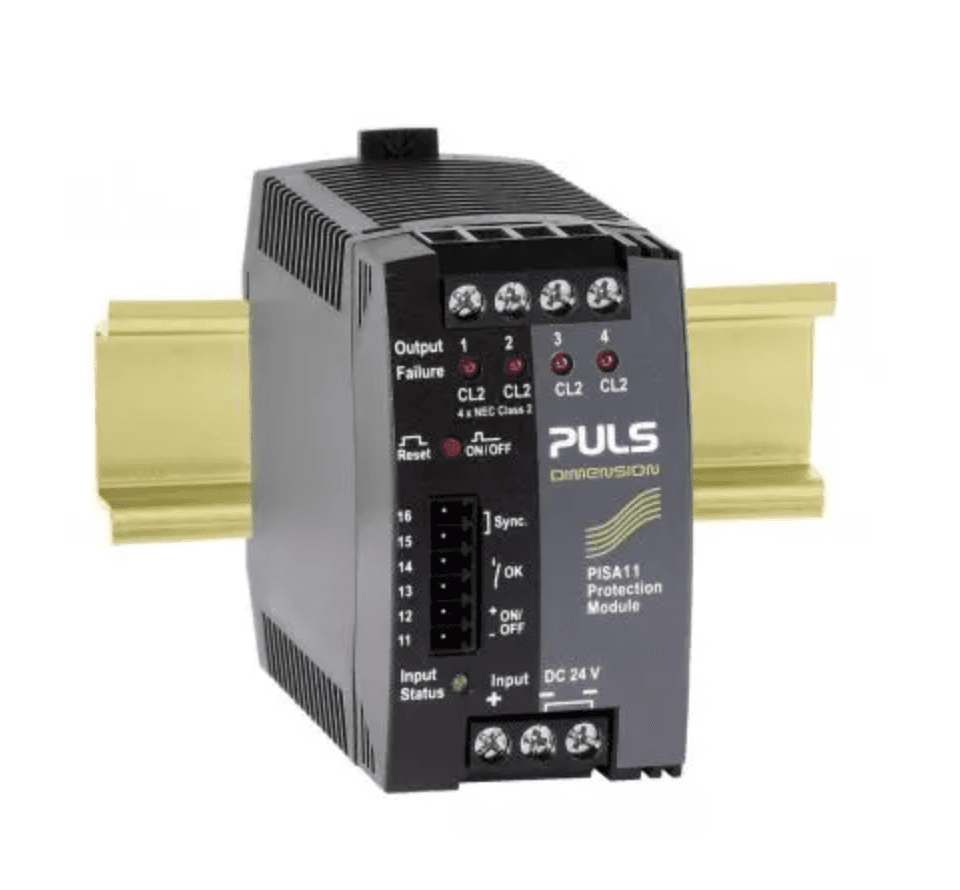

PULS PISA11.401 is a protection unit designed as a 4-channel protection module with 1 input and 4 outputs, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and adheres to NEC Class 2 design specifications. The rated current is 20A, distributed as 6A + 6A + 12A + 12A with a derating of 0.025A/+60°C to +70°C for each channel. It features screw-clamp connections for secure installation. As part of the PISA11-series, this unit has dimensions of W45mm x H75mm x D91mm and requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc being typical and 21.4Vdc needed to turn on the outputs. The output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include short-circuit protection with an 8ms shutdown time and current limitation with a 20.5A to 30A adjustable threshold. Power dissipation at full output load with a 24V input is 4.2W. The processing time for turn-on delay of output is 270ms, and the voltage drop across channels 1+2 and 3+4 is 178mV and 182mV, respectively. Electrical durability is rated at 171,000 hours at 40°C and 485,000 hours at 25°C for outputs of 2x3A and 2x5A.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: Puls Protection Modules (DC)

PISA11.402 on Powermatic Associates

PISA11.402

Puls

PULS PISA11.402 is a protection unit designed as a 4-channel protection module with 1 input and 4 outputs, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and adheres to NEC Class 2 design specifications. The rated current is 12A, distributed as 3A per channel, and it features screw-clamp connections for secure installation. As part of the PISA11-series, this unit measures 45mm in width, 75mm in height, and 91mm in depth. It requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc typical and 21.4Vdc needed to activate the outputs. The output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include short-circuit protection with a 10ms shutdown time and current limitation with an adjustable threshold between 16.6A and 23.6A. Power dissipation at full output load with a 24V input is 1.4W, and the processing time for output turn-on delay is 270ms. The voltage drop across the unit is 75mV / 0.075V. Electrical durability is rated at 229,000 hours at 40°C with a 4x1.5A output and 649,000 hours at 25°C with a 4x1.5A output.
