CU-3E19RBU-5 Panasonic Industrial Automation Components

CU-3E19RBU-5 on Powermatic Associates
Panasonic

Part#:CU-3E19RBU-5

Manufacturer:Panasonic

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

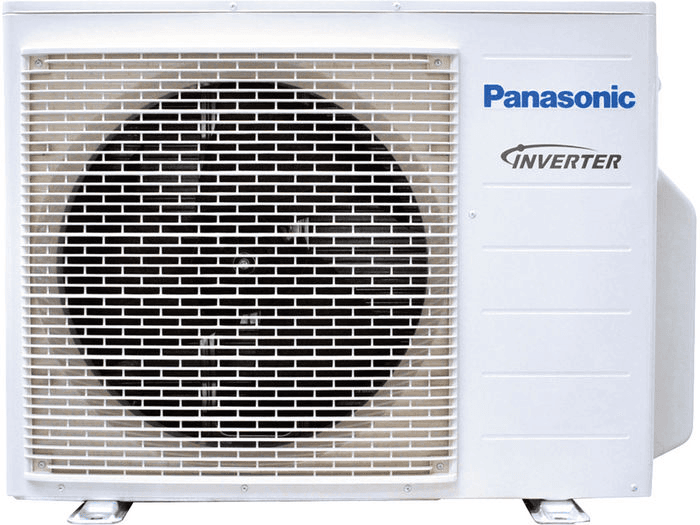

CU-3E19RBU-5 Panasonic - CU-3E19RBU-5 Multi 2-3 Zone outdoor condenser

Product Details

  • Heating Capacity
    26,000 btus per hour
  • BTU/Hour
    19,000 btus per hour

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

2-3 Zone; 1.5 Ton Multi-Zone outdoor condenser unit provides heating and cooling for 2-3 indoor units. -5F Cold Climate Heat Operation. Select wall mount, 4-Way Cassette or Slim Duct units for indoor installation.
