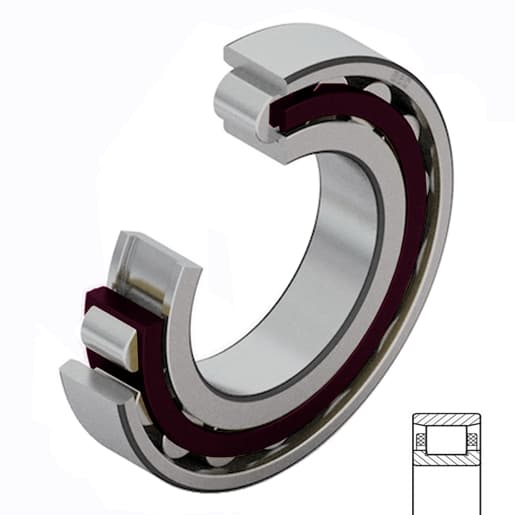

N1013BTCCG25P4 NSK Mechanical Components

Name: N1013BTCCG25P4
Brand: NSK

Part#:N1013BTCCG25P4

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

65MM Bore; Straight Bore Profile; 100MM Outside Diameter; 18MM Width; Polymer Cage Material; RBEC 7 | ISO P4; Single Row; Outer Ring - Both Sides Separable; No Snap Ring; Relubricatable; CCG25 Internal Clearance; Retainer

Product Details

Precision Class
RBEC 7 | ISO P4
Bore
2.559 Inch | 65 Millimeter
CATEGORY
Cylindrical Roller Bearings
Snap Ring
No
Weight / LBS
1.09
Minimum Buy Quantity
N/A
Retainer
Yes
Brand
NSK
Internal Clearance
CCG25
Number of Rows of Rollers
Single Row
Profile
Complete with Outer and Inner Ring
Width
0.709 Inch | 18 Millimeter
Bore Profile
Straight
Outside Diameter
3.937 Inch | 100 Millimeter
Separable
Outer Ring - Both Sides
Rolling Element
Cylindrical Roller Bearing
Inch - Metric
Metric
Cage Material
Polymer
Relubricatable
Yes
Weight / Kilogram
0.54

Other Features

Standard Capacity | 2 Rib Inner Ring | Plain Outer Ring

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

N1013BTCCG25P4 NSK

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
