608T1XEDDWMC4ER-03 J2N NS7L5 NSK Mechanical Components

608T1XEDDWMC4ER-03 J2N NS7L5 on Powermatic Associates
NSK

Part#:608T1XEDDWMC4ER-03 J2N NS7L5

Manufacturer:NSK

Product Lifecycle:Active

Get a quick Quote!

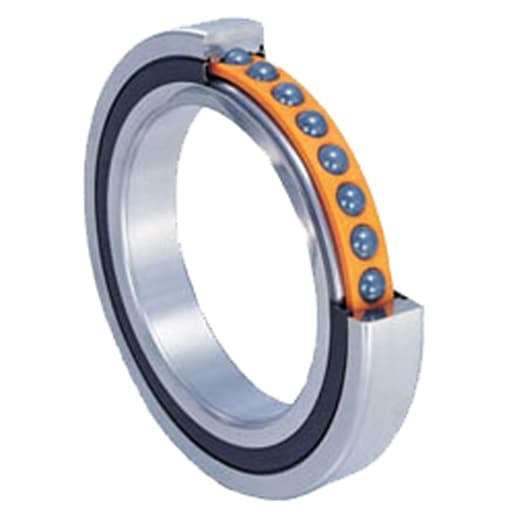

Single Row Ball Bearing; 8MM Bore; 22MM Outside Diameter; 7MM Outer Race Width; 2 Seals; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C4-Extra Loose Internal Clearance; Polyamide Cage

About the manufacturer: NSK is one of the manufacturers that offers Mechanical Components that you can order at Powermatic Associates site. NSK embarked on its journey by producing Japan's first bearings in 1916. Since then, it has evolved into a global entity focused on researching, designing, and manufacturing Motion & Control™ solutions crucial for mobility and industrial applications. NSK holds the position of the leading bearing supplier in Japan and ranks as the third largest supplier worldwide by market share. Our innovative products and technologies boost automotive performance and industrial productivity while significantly lowering energy consumption. In the early 1960s, we expanded our horizons beyond Japan, establishing over 200 business locations across 30 countries and forming an extensive network of joint ventures and partnerships worldwide.

Check out the 608T1XEDDWMC4ER-03 J2N NS7L5 NSK price in the box on the right side or send a quick quote.

Product Details

  • Bore
    0.315 Inch | 8 Millimeter
  • Weight / LBS
    0.0269
  • Outer Race Width
    0.276 Inch | 7 Millimeter
  • Outside Diameter
    0.866 Inch | 22 Millimeter
  • Internal Clearance
    C4-Extra Loose
  • Other Features
    Deep Groove | NS7L5 Grease
  • Enclosure Type
    Contact Seal
  • Inch - Metric
    Metric
  • Cage Material
    Polyamide
  • Internal Special Features
    No
  • Weight / Kilogram
    0.01
  • Brand
    NSK
  • Rolling Element
    Ball Bearing
  • Maximum Capacity / Filling Slot
    No
  • Snap Ring
    No
  • Enclosure
    2 Seals
  • Precision Class
    ABEC 1 | ISO P0
  • Minimum Buy Quantity
    N/A
  • CATEGORY
    Single Row Ball Bearings

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
