CSHF-16N Mencom Electronic Components

CSHF-16N on Powermatic Associates
Mencom

Part#:CSHF-16N

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

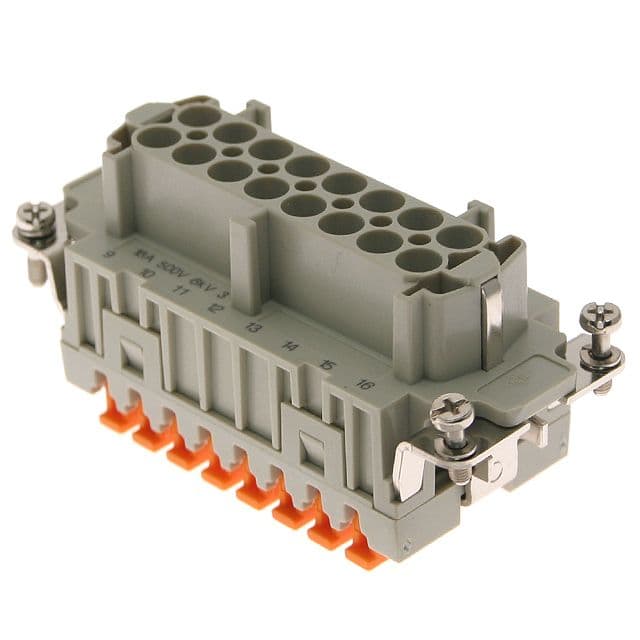

Standard, CSH series, Female Rectangular Insert, size 77.27, 16 pin, 16 amp, Squich Spring, (17-32)

Product Details

  • Temperature Range in Degrees Celsius
    -40 C to +125 C
  • Weight (lbs.)
    0.203000
  • Termination
    Squich Spring
  • Lower AWG
    26
  • Cover
    No
  • Upper AWG
    14
  • Voltage Rating
    600
  • Gender
    Female
  • Amperage Rating
    16
  • Double Insert
    77.62
  • Contact Plating
    Silver
  • ILME Series
    CSH
  • Product Type
    Rectangular Connectors
  • Gasket/O-Ring
    No
  • Component Type
    Insert
  • Insert Dimension
    77.27
  • Enclosure Dimension
    77.27
  • Housing/Insert Type
    Standard
  • Pin Count
    16
  • Number of Entries
    0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CSHF-16N on Powermatic Associates is $22.38. Order now.
