601204 Lapp Industrial Automation Components

Name: 601204
Brand: Lapp

Part#:601204

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

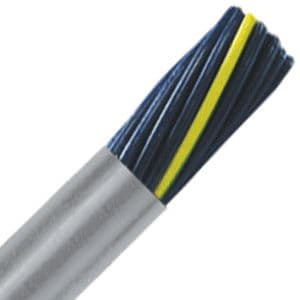

601204 Lapp - ÖLFLEX 190 4G4 12/4C

Product Details

Voltage
600 volts
Stranding
Class 5 Fine Wire
Operating Temperature
-40 degrees celsius, 105 degrees celsius
Jacket Material
Thermoplastic Polymer
Jacket Color
Gray
Insulation Material
PVC
Gauge
12 american wire gauge
Conductor Material
Finely Stranded Bare Copper
Bend Radius
4 X Cable Diameter
WEIGHT LBS/MFT
198
UL STYLE / STANDARD
UL 13 UL 2277
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
MANUFACTURER PART NUMBER
601204
ATTRIBUTES
UL Oil Res I/IISunlight resistant Direct burialNFPA 79
TRAY RATINGS
UL TC-ER
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
DYNAMIC TEMPERATURE RATING
-13°F to +194°F-25°C to +90°C
TEMPERATURE
-13°F to +194°F -25°C to +90°C
JACKET MATERIAL
Thermoplastic Polymer
VOLTAGE
600V

JACKET COLOR

Gray

SHIELDING

Unshielded

INSULATION

PVC

NOMINAL OD (MM)

11.5

SERIES

ÖLFLEX® 190 / 190 CY

CONDUCTOR COLOR

Black with white printing plus green/yellow ground

AWG/GAUGE

NOMINAL OD (IN)

0.454

NUMBER OF CONDUCTORS

CONDUCTOR STRANDING

Stranded

CONDUCTOR MATERIAL

Bare copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Cable, Flexible, ÖLFLEX 190, 12 AWG/4C, 600V, UL TC-ER, UL AWM, CSA AWM FT4
