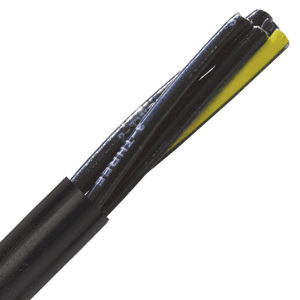

220603 Lapp Industrial Automation Components

Product Details

• Voltage
  600 volts
• Operating Temperature
  -25 degrees celsius, 90 degrees celsius
• Stranding
  Class 5 Fine Wire
• Jacket Color
  Black
• Jacket Material
  Thermoplastic Polymer
• Insulation Material
  Nylon, PVC
• Gauge
  6 american wire gauge
• Bend Radius
  4 X Cable Diameter
• Conductor Material
  Finely Stranded Bare Copper
• APPLICATION
  Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
• WEIGHT LBS/MFT
  454
• TRAY RATINGS
  UL ITC-ER UL PLTC-ER UL TC-ER
• MANUFACTURER PART NUMBER
  220603
• UL STYLE / STANDARD
  UL 13 UL 1063 UL 1277 UL 1690 UL 2250
• STANDARDS/APPROVALS
  UL Approved CSA Approved CE Approved
• ATTRIBUTES
  UL Oil Res I/IISunlight resistant Direct burialNFPA 79
• STATIC TEMPERATURE RATING
  -40°F to +221°F-40°C to +105°C
• DYNAMIC TEMPERATURE RATING
  -13°F to +221°F -25°C to +105°C
• TEMPERATURE RANGE
  -13°F to +194°F -25°C to +90°C
• VOLTAGE
  600V
INSULATION
PVC/Nylon
CONDUCTOR COLOR
Black with white printing plus green/yellow ground
NUMBER OF CONDUCTORS
3
CONDUCTOR STRANDING
Stranded
NOMINAL OD (MM)
19.7
SERIES
ÖLFLEX® TRAY II / TRAY II CY
AWG/GAUGE
6
CONDUCTOR MATERIAL
Bare copper
SHIELDING
Unshielded
NOMINAL OD (IN)
0.776
JACKET MATERIAL
Thermoplastic Polymer
JACKET COLOR
Black
